2N3764 - PNP Transistor

Semicoa Semiconductor

📥 Download Datasheet

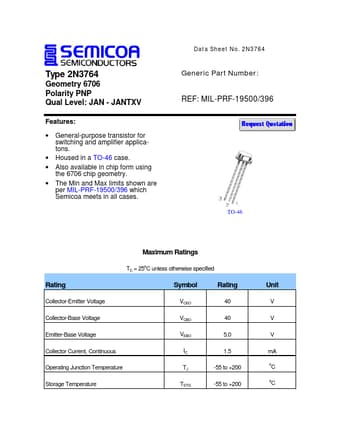

2N3764 Datasheet Preview — Preview of 2N3764 PDF

datasheet Preview Page 2

Datasheet Details

Part number	2N3764
Manufacturer	Semicoa Semiconductor
File Size	117.68 KB
Description	PNP Transistor
Datasheet	2N3764_SemicoaSemiconductor.pdf

2N3764 Product details

Features

General-purpose transistor for switching and amplifier applicatons. Housed in a TO-46 case. Also available in chip form using the 6706 chip geometry. The Min and Max limits shown are per MIL-PRF-19500/396 which Semicoa meets in all cases. Generic Part Number: REF: MIL-PRF-19500/396 TO-46 Maximum Ratings TC = 25 C unless otherwise specified o Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current, Continuous Ope.
