STF8A60 - Bi-Directional Triode Thyristor

SemiWell

The STF8A60 by SemiWell is a Bi-Directional Triode Thyristor. Below is the official datasheet preview.

📥 Download Datasheet

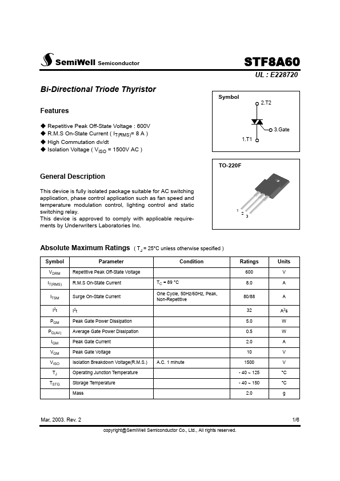

STF8A60 Bi-Directional Triode Thyristor by SemiWell - Datasheet Preview — Official preview page of the **STF8A60** Bi-Directional Triode Thyristor datasheet (SemiWell).

Datasheet Details

Part number	STF8A60
Manufacturer	SemiWell
File Size	772.14 KB
Description	Bi-Directional Triode Thyristor
Datasheet	STF8A60_SemiWell.pdf
Additional preview pages of the STF8A60 datasheet.

STF8A60 Product details

Description

This device is fully isolated package suitable for AC switching application, phase control application such as fan speed and temperature modulation control, lighting control and static switching relay.

Features

Repetitive Peak Off-State Voltage : 600V.
R. M. S On-State Current ( IT(RMS)= 8 A ).
High Commutation dv/dt.
Isolation Voltage ( VISO = 1500V AC ) TO-220F ▼ ▲ ○ 3.Gate 1.T1 ○ General.
