SS16D, SS12D - Surface Mount Schottky Barrier Diodes

Name: SS16D
SKU: SS16D-1584864

SemiWell

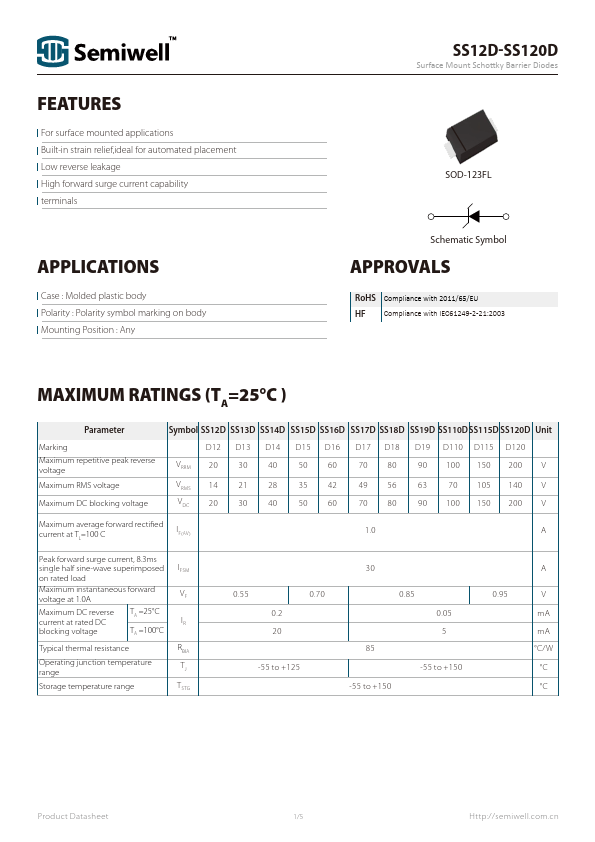

The SS16D by SemiWell is a Surface Mount Schottky Barrier Diodes. Below is the official datasheet preview.

Datasheet Details

Part number	SS16D, SS12D
Manufacturer	SemiWell
File Size	224.58 KB
Description	Surface Mount Schottky Barrier Diodes
Datasheet	SS12D-SemiWell.pdf
Note	This datasheet PDF includes multiple part numbers: SS16D, SS12D. Please refer to the document for exact specifications by model.

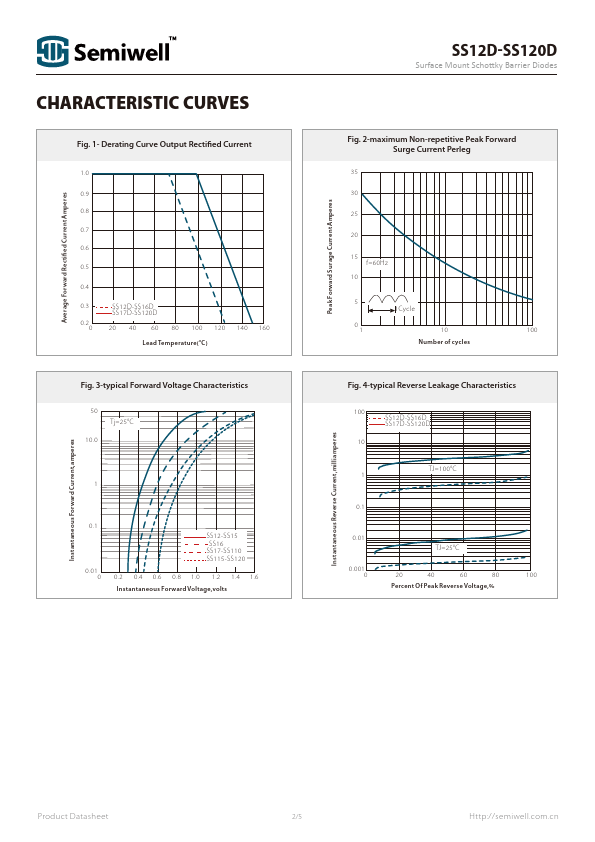

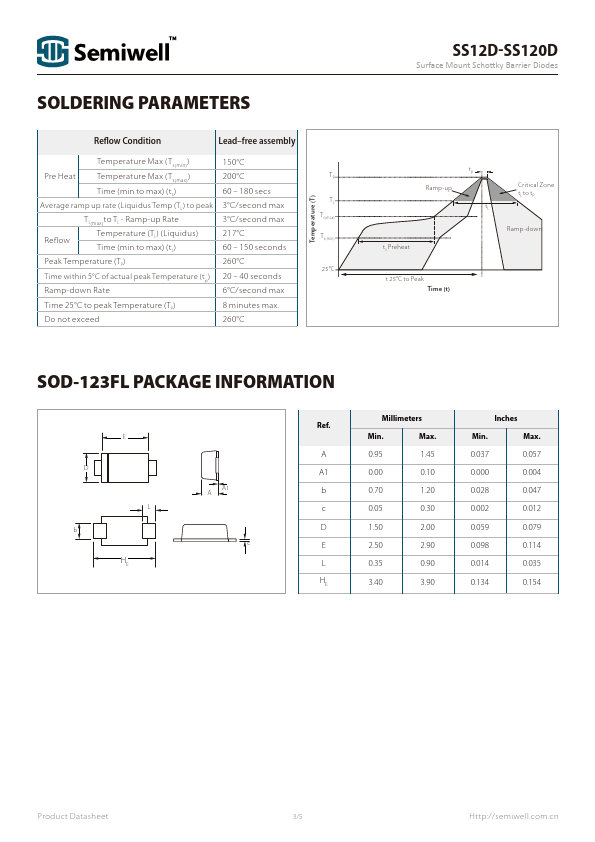

Additional preview pages of the SS16D datasheet.
