SM7N60C - 600V N-Channel MOSFET

📥 Download Datasheet

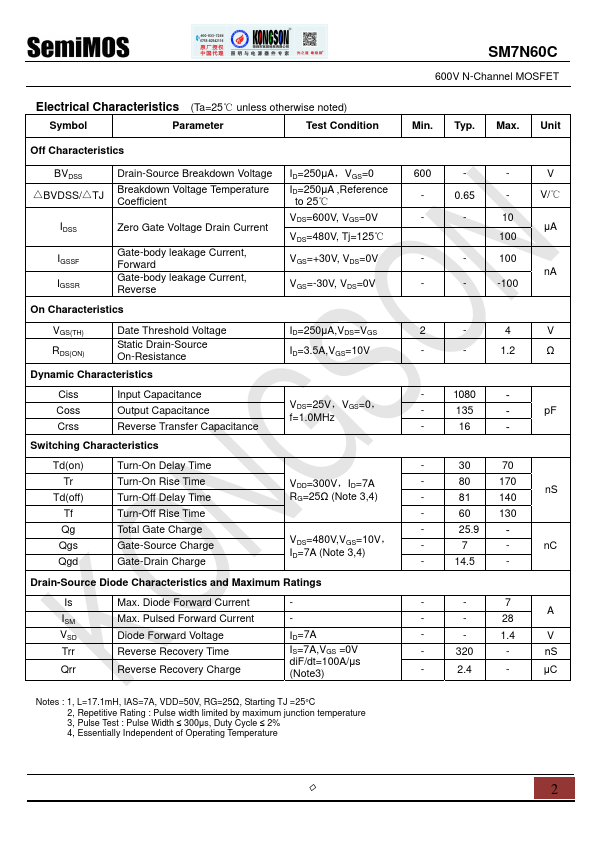

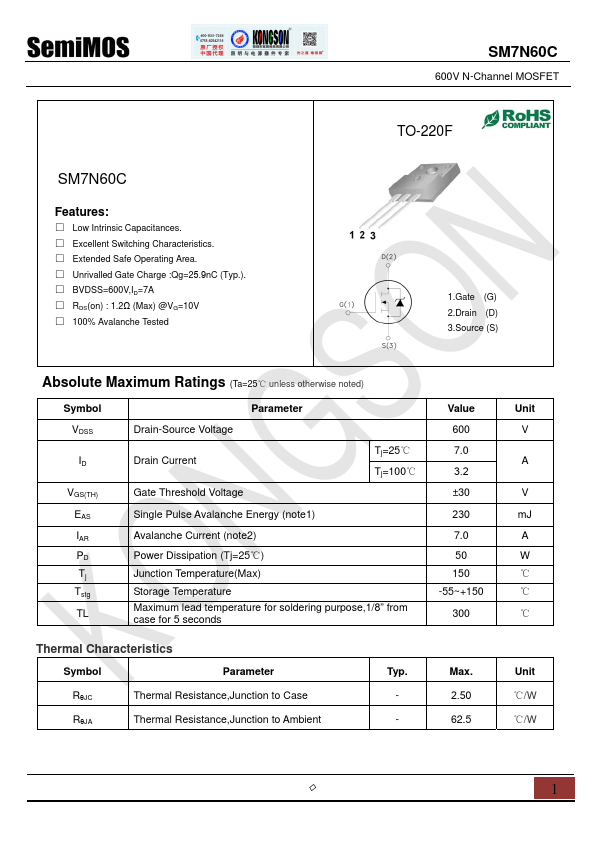

SM7N60C Datasheet Preview — Preview of SM7N60C PDF

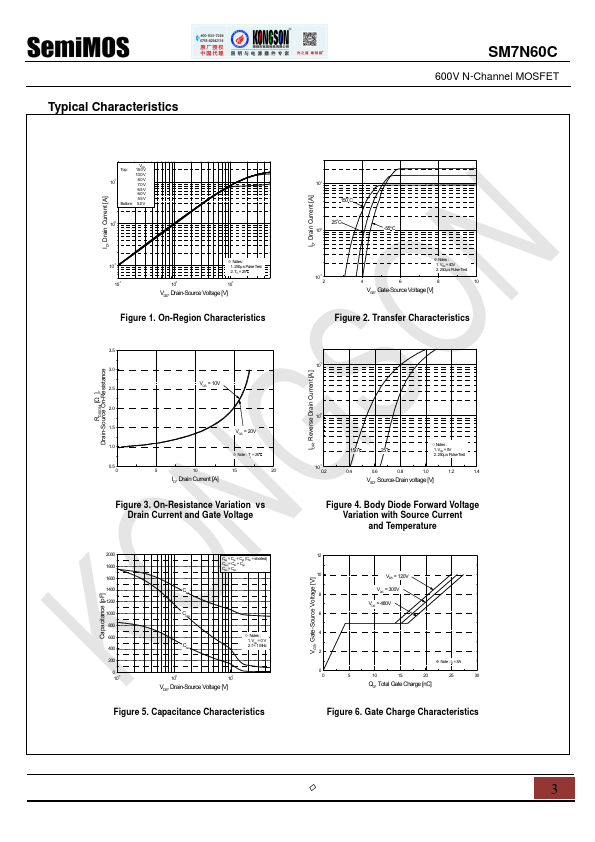

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SM7N60C
Manufacturer	SemiMOS
File Size	1.09 MB
Description	600V N-Channel MOSFET
Datasheet	SM7N60C-SemiMOS.pdf

SM7N60C Product details

Features

Low Intrinsic Capacitances.
Excellent Switching Characteristics.
Extended Safe Operating Area.
Unrivalled Gate Charge :Qg=25.9nC (Typ. ).
BVDSS=600V,ID=7A.
RDS(on) : 1.2Ω (Max) @VG=10V.
100% Avalanche Tested 1.Gate (G) 2.Drain (D) 3.Source (S) Absolute Maximum Ratings (Ta=25℃ unless otherwise noted) Symbol VDSS ID VGS(TH) EAS IAR PD Tj Tstg TL Parameter Drain-Source Voltage Drain Current Gate Threshold Voltage Tj=25℃ Tj=10.
