KSG13005A - NPN Silicon Power Transistor

Product Overview

SemiHow

📥 Download Datasheet

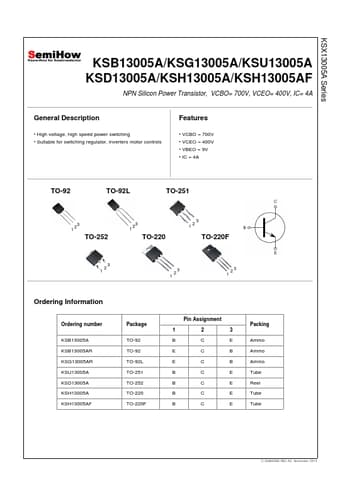

KSG13005A NPN Silicon Power Transistor by SemiHow - Datasheet Preview — Datasheet preview – KSG13005A

Datasheet Details

Part number	KSG13005A
Manufacturer	SemiHow
File Size	252.06 KB
Description	NPN Silicon Power Transistor
Datasheet	KSG13005A Datasheet
Additional preview pages of the KSG13005A datasheet.

Product details

Description

High voltage, high speed power switching Suitable for switching regulator, inverters motor controls

Features

VCBO = 700V.
VCEO = 400V.
VBEO = 9V.
IC = 4A TO-92 TO-92L TO-251 1 23 TO-252 1 23 TO-220 3 12 TO-220F 23 1 Ordering Information Ordering number KSB13005A KSB13005AR KSG13005AR KSU13005A KSD13005A KSH13005A KSH13005AF Package TO-92 TO-92 TO-92L TO-251 TO-252 TO-220 TO-220F 23 1 23 1 Pin Assignment 123 BCE ECB ECB BCE BCE BCE BCE Packing Ammo Ammo Ammo Tube Reel Tube Tube క͑΄Ͷ;ͺ͹΀Έ͑΃Ͷ·͟Ͳ͑͡͝ͿΠΧΖΞΓΖΣ͑ͣͥ͑͢͡ KSX13005A Series KSB13005A/KSG13005A/KSU1.
