HRP180N10K N-Channel Trench MOSFET

HRP180N10K Description

HRP180N10K HRP180N10K 100V N-Channel Trench MOSFET .

HRP180N10K Features

*  Originative New Design  Superior Avalanche Rugged Technology  Excellent Switching Characteristics  Unrivalled Gate Charge : 85 nC (Typ. )  Extended Safe Operating Area  Lower RDS(ON) : 15 mΩ (Typ. ) @VGS=10V  100% Avalanche Tested December 2014 BVDSS = 100 V RDS(on) typ =15 mΩ ID = 65 A TO-22

📥 Download Datasheet

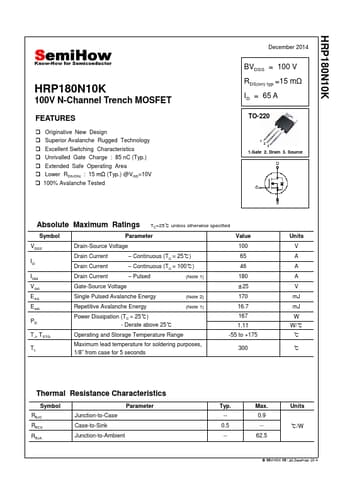

Preview of HRP180N10K PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HRP180N10K
Manufacturer
SemiHow
File Size
886.25 KB
Datasheet
HRP180N10K-SemiHow.pdf
Description
N-Channel Trench MOSFET
