HRF140N06K N-Channel MOSFET

HRF140N06K Description

HRF140N06K HRF140N06K 60V N-Channel Trench MOSFET .

HRF140N06K Features

*  BVDSS = 60 V  ID = 40 A  Unrivalled Gate Charge : 40 nC (Typ. )  Lower RDS(ON) : 11.5 mΩ (Typ. ) @VGS=10V  100% Avalanche Tested December 2014 8DFN 5x6 1 Absolute Maximum Ratings TC=25℃ unless otherwise specified Symbol Parameter Value VDSS ID IDM VGS EAS EAR PD TJ, TSTG TL Drain-Source V

📥 Download Datasheet

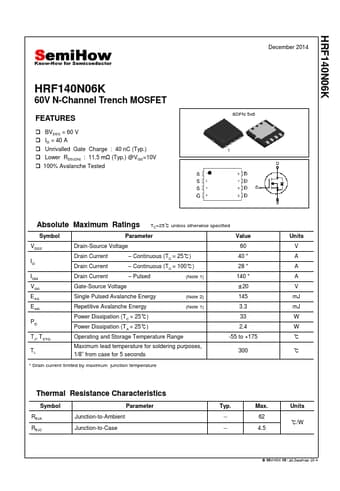

Preview of HRF140N06K PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HRF140N06K
Manufacturer
SemiHow
File Size
954.05 KB
Datasheet
HRF140N06K-SemiHow.pdf
Description
N-Channel MOSFET
