2N3420L - Bipolar NPN Device

📥 Download Datasheet

Datasheet preview – 2N3420L

Datasheet Details

Part number 2N3420L
Manufacturer Semelab
File Size 64.72 KB
Description Bipolar NPN Device
Datasheet download datasheet 2N3420L Datasheet
Additional preview pages of the 2N3420L datasheet.

📁 Similar Datasheet

  • 2N3420 - NPN MEDIUM POWER SILICON TRANSISTOR (Microsemi Corporation)
  • 2N3420 - NPN TRANSISTORS (Central Semiconductor)
  • 2N3420 - Power Transistors (UNITRODE)
  • 2N3420 - NPN Meduim Power Silicon Transistor (Aeroflex)
  • 2N3420 - NPN Medium Power Silicon Transistor (VPT)
  • 2N3420 - NPN Medium Power Silicon Transistor (MA-COM)
  • 2N3420S - NPN MEDUIM POWER SILICON TRANSISTOR (Microsemi)
  • 2N3420S - NPN Meduim Power Silicon Transistor (Aeroflex)
  • 2N3420S - NPN Medium Power Silicon Transistor (MA-COM)
  • 2N3420S - NPN Medium Power Silicon Transistor (VPT)
Other Datasheets by Semelab

    Full PDF Text Transcription

    Click to expand full text

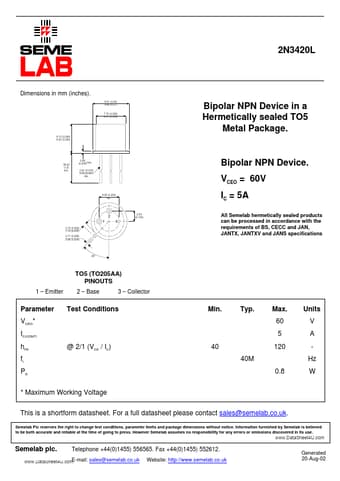

    ( DataSheet : www.DataSheet4U.com ) 2N3420L Dimensions in mm (inches). 8.51 (0.34) 9.40 (0.37) 7.75 (0.305) 8.51 (0.335) Bipolar NPN Device in a Hermetically sealed TO5 Metal Package. 6.10 (0.240) 6.60 (0.260) 38.00 (1.5) min. 0.89 max. (0.035) 0.41 (0.016) 0.53 (0.021) dia. Bipolar NPN Device. VCEO = 60V 5.08 (0.200) typ. IC = 5A 2.54 (0.100) 2 1 0.74 (0.029) 1.14 (0.045) 0.71 (0.028) 0.86 (0.034) 3 All Semelab hermetically sealed products can be processed in accordance with the requirements of BS, CECC and JAN, JANTX, JANTXV and JANS specifications 45° TO5 (TO205AA) PINOUTS 1 – Emitter 2 – Base 3 – Collector Parameter VCEO* IC(CONT) hFE ft PD Test Conditions Min. Typ. Max. 60 5 Units V A Hz @ 2/1 (VCE / IC) 40 40M 120 0.
