IRFF120 - N-CHANNEL POWER MOSFET

📥 Download Datasheet

Datasheet Details

Part number IRFF120
Manufacturer Seme LAB
File Size 19.76 KB
Description N-CHANNEL POWER MOSFET
Datasheet download datasheet IRFF120 Datasheet

📁 Similar Datasheet

  • IRFF120 - N-Channel Power MOSFET (Intersil Corporation)
  • IRFF120 - N-channel Transistors (International Rectifier)
  • IRFF120 - N-Channel MOSFET (GE Solid State)
  • IRFF121 - N-Channel MOSFET (GE Solid State)
  • IRFF122 - N-Channel MOSFET (GE Solid State)
  • IRFF123 - N-Channel MOSFET (GE Solid State)
  • IRFF110 - N-Channel Power MOSFET (Intersil Corporation)
  • IRFF110 - (IRFF110 - IRFF113) Power MOS Field-Effect Transistors (GE Solid State)
  • IRFF110 - HEXFET TRANSISTORS (International Rectifier)
  • IRFF111 - (IRFF110 - IRFF113) Power MOS Field-Effect Transistors (GE Solid State)
Other Datasheets by Seme LAB

Full PDF Text Transcription

Click to expand full text

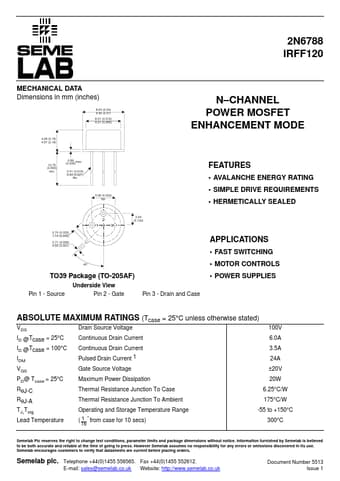

2N6788 IRFF120 MECHANICAL DATA Dimensions in mm (inches) 8.64 (0.34) 9.40 (0.37) 8.01 (0.315) 9.01 (0.355) 4.06 (0.16) 4.57 (0.18) N–CHANNEL POWER MOSFET ENHANCEMENT MODE 12.70 (0.500) min. (00.0.8395)max. 0.41 (0.016) 0.53 (0.021) dia. 5.08 (0.200) typ. FEATURES • AVALANCHE ENERGY RATING • SIMPLE DRIVE REQUIREMENTS • HERMETICALLY SEALED 0.74 (0.029) 1.14 (0.045) 0.71 (0.028) 0.53 (0.021) 2 13 2.54 (0.100) 45° TO39 Package (TO-205AF) Underside View Pin 1 - Source Pin 2 - Gate Pin 3 - Drain and Case APPLICATIONS • FAST SWITCHING • MOTOR CONTROLS • POWER SUPPLIES ABSOLUTE MAXIMUM RATINGS (Tcase = 25°C unless otherwise stated) VDS Drain Source Voltage 100V ID @Tcase = 25°C Continuous Drain Current 6.
