D5007UK - METAL GATE RF SILICON FET

Seme LAB

Datasheet Details

Part number	D5007UK
Manufacturer	Seme LAB
File Size	27.73 KB
Description	METAL GATE RF SILICON FET
Datasheet	D5007UK Datasheet
Additional preview pages of the D5007UK datasheet.

📁 Similar Datasheet

D5007-H2-DIM-MR16 - LED SPOT LIGHT (WINSUN)
D5011 - 2SD5011 (Inchange Semiconductor)
D5023 - Silicon NPN Transistor (PHENITEC)
D5023 - NPN Transistor (JILIN SINO)
D5026 - 16 large-screen LED Controller (Double Microelectronics)
D5032 - Low-frequency amplification shell rated bipolar transistors (ETC)
D5071 - KSD5071 (Fairchild Semiconductor)
D5071 - 2SD5071 (SavantIC)
D5072 - NPN TRIPLE DIFFUSED PLANAR SILICON TRANSISTOR (Fairchild)
D5072 - 2SD5072 (Savantic)

Other Datasheets by Seme LAB

D5001UK - METAL GATE RF SILICON FET
D5002UK - METAL GATE RF SILICON FET
D5006UK - METAL GATE RF SILICON FET
D5011UK - METAL GATE RF SILICON FET
D5012UK - METAL GATE RF SILICON FET
D5013UK - ROHS COMPLIANT METAL GATE RF SILICON FET
D5017UK - GOLD METALLISED MULTI-PURPOSE SILICON DMOS RF FET
D5018UK - METAL GATE RF SILICON FET

Full PDF Text Transcription

Click to expand full text

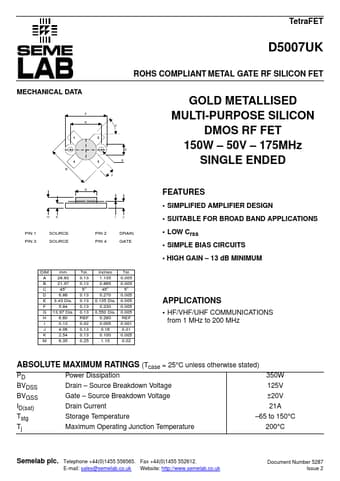

TetraFET D5007UK ROHS COMPLIANT METAL GATE RF SILICON FET MECHANICAL DATA A B 1 2 4 3 M G C D E F HK PIN 1 PIN 3 SOURCE SOURCE IJ PIN 2 PIN 4 DRAIN GATE DIM mm A 28.83 B 21.97 C 45° D 6.86 E 3.43 Dia. F 5.84 G 13.97 Dia. H 6.60 I 0.13 J 4.06 K 2.54 M 6.35 Tol. 0.13 0.13 5° 0.13 0.13 0.13 0.13 REF 0.02 0.13 0.13 0.25 Inches 1.135 0.865 45° 0.270 0.135 Dia. 0.230 0.550 Dia. 0.260 0.005 0.16 0.100 1.10 Tol. 0.005 0.005 5° 0.005 0.005 0.005 0.005 REF 0.001 0.01 0.005 0.
