CV10814 - Bipolar PNP Device

Seme LAB

Datasheet Details

Part number	CV10814
Manufacturer	Seme LAB
File Size	9.74 KB
Description	Bipolar PNP Device
Datasheet	CV10814 Datasheet
Additional preview pages of the CV10814 datasheet.

📁 Similar Datasheet

CV10814 - AMPLIFIER TRANSISTOR (Motorola)
CV10253 - AMPLIFIER TRANSISTOR (Motorola)
CV1041EP - Flashing Lamp Controller (HUAJING)
CV10440 - AMPLIFIER TRANSISTOR (Motorola)
CV1-xxx - Current Transformers & Sensors (Premo)
CV110-1 - Cellular-band Single-Branch Downconverter (WJ Communication)
CV110-1A - Cellular-band High Linearity Downconverter (WJ Communication)
CV110-2A - Cellular-band High Linearity Downconverter (WJ Communication)
CV110-3A - Cellular-band High Linearity Downconverter (WJ Communication)
CV111-1 - PCS/DCS-band High Linearity Downconverter (WJ Communication)

Other Datasheets by Seme LAB

CV10806 - Bipolar NPN Device in a Hermetically sealed TO18 Metal Package
CV10253 - Bipolar NPN Device
CV10253L - Bipolar NPN Device
CV10254 - Bipolar NPN Device
CV10254L - Bipolar NPN Device
CV10440 - Bipolar NPN Device in a Hermetically sealed TO18 Metal Package
CV12253L - Bipolar NPN Device

Full PDF Text Transcription

Click to expand full text

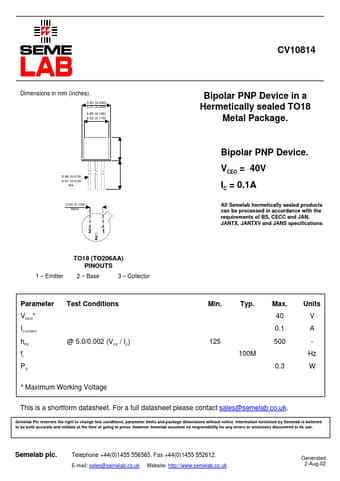

CV10814 Dimensions in mm (inches). 5.84 (0.230) 5.31 (0.209) 4.95 (0.195) 4.52 (0.178) Bipolar PNP Device in a Hermetically sealed TO18 Metal Package. 0.48 (0.019) 0.41 (0.016) dia. 2.54 (0.100) Nom. 31 2 1 – Emitter TO18 (TO206AA) PINOUTS 2 – Base 3 – Collector Bipolar PNP Device. VCEO = 40V IC = 0.1A All Semelab hermetically sealed products can be processed in accordance with the requirements of BS, CECC and JAN, JANTX, JANTXV and JANS specifications Parameter VCEO* IC(CONT) hFE ft PD Test Conditions @ 5.0/0.002 (VCE / IC) * Maximum Working Voltage Min. 125 Typ. 100M Max. 40 0.1 500 0.3 Units V A Hz W This is a shortform datasheet. For a full datasheet please contact sales@semelab.co.uk.
