2N6235 Datasheet - Seme LAB

2N6235 Bipolar NPN Device

2N6235 Dimensions in mm (inches). 3.68 (0.145) rad. max. 6.35 (0.250) 8.64 (0.340) 3.61 (0.142) 4.08(0.161) rad. Bipolar NPN Device in a Hermetically sealed TO66 Metal Package. 11.94 (0.470) 12.70 (0.500) 24.13 (0.95) 24.63 (0.97) 1 14.48 (0.570) 14.99 (0.590) 2 0.71 (0.028) 0.86 (0.034) Bipolar NPN Device. VCEO = 325V IC = 5A All Semelab hermetically sealed products can be processed in accordance with the requirements of BS, CECC and JAN, JANTX, JANTXV and JANS specifications 4.83 (0.

2N6235 Datasheet (11.92 KB)

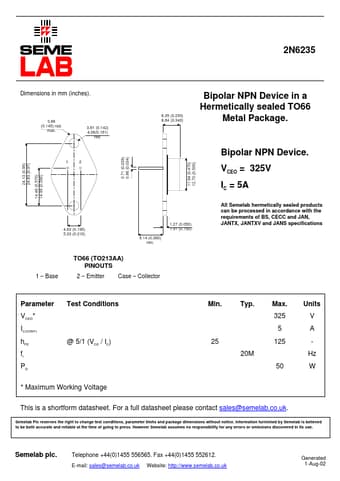

2N6235 Datasheet Preview — Preview of 2N6235 PDF

Datasheet Details

Part number:

2N6235

Manufacturer:

Seme LAB

File Size:

11.92 KB

Description:

Bipolar npn device.
