SM7012-CS3, SM7012-CR1 - Right Angle and Straight GBIC Connectors

Name: SM7012-CS3
SKU: SM7012-CS3-910437

📥 Download Datasheet

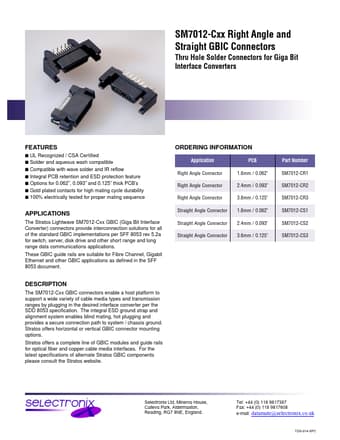

SM7012-CS3 Datasheet Preview — This datasheet PDF includes multiple part numbers: SM7012-CS3, SM7012-CR1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SM7012-CS3, SM7012-CR1
Manufacturer	Selectronix
File Size	167.06 KB
Description	Right Angle and Straight GBIC Connectors
Datasheet	SM7012-CR1-Selectronix.pdf
Note	This datasheet PDF includes multiple part numbers: SM7012-CS3, SM7012-CR1. Please refer to the document for exact specifications by model.

SM7012-CS3 Product details

Description

The SM7012-Cxx GBIC connectors enable a host platform to support a wide variety of cable media types and transmission ranges by plugging in the desired interface converter per the SDD 8053 specification.

Features

s UL Recognized / CSA Certified s Solder and aqueous wash compatible s Compatible with wave solder and IR reflow s Integral PCB retention and ESD protection feature s Options for 0.062”, 0.093” and 0.125” thick PCB’s s Gold plated contacts for high mating cycle durability s 100% electrically tested for proper mating sequence.
