VT-200-F - Quartz Crystal Unit

VT-200-F Description

VT-200-F Standard Specifications Item Symbol 　　Nominal Frequency f_nom 　　Frequency Tolerance f_tol 　　Turnover Temperature Ti 　　Parabolic Coe.

VT-200-F Applications

* Clocks, Timers, Water/Electricity Meter, Remote-controller, Sub-clock function for a variety of Microcomputer etc. (Temperature: 25±2℃, DL;0.1μW) Specifications Conditions Note 32.768kHz ±20×10-6 Please specify +25±5℃ (-0.035±10%)×10-6/℃2 7pF 12.5pF 50kΩ max. 1.0μW max. 0.1μW typ. 0.9pF t

📥 Download Datasheet

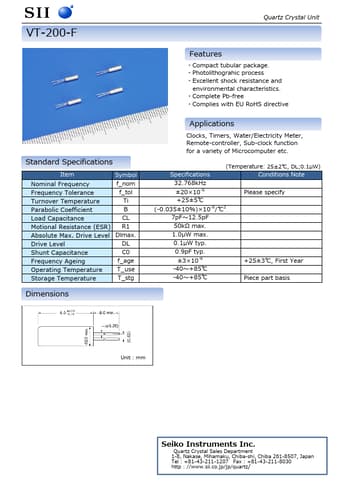

Preview of VT-200-F PDF

Datasheet Details

Part number
VT-200-F
Manufacturer
Seiko
File Size
166.86 KB
Datasheet
VT-200-F-Seiko.pdf
Description
Quartz Crystal Unit
