SPG8640, SPG8650 - (SPG8640 - SPG8651) Crystal Oscillator Programmable

Name: SPG8640
SKU: SPG8640-555018

Seiko

The SPG8640 by Seiko is a (SPG8640 - SPG8651) Crystal Oscillator Programmable. Below is the official datasheet preview.

Datasheet Details

Part number	SPG8640, SPG8650
Manufacturer	Seiko
File Size	248.74 KB
Description	(SPG8640 - SPG8651) Crystal Oscillator Programmable
Datasheet	SPG8650_Seiko.pdf
Note	This datasheet PDF includes multiple part numbers: SPG8640, SPG8650. Please refer to the document for exact specifications by model.

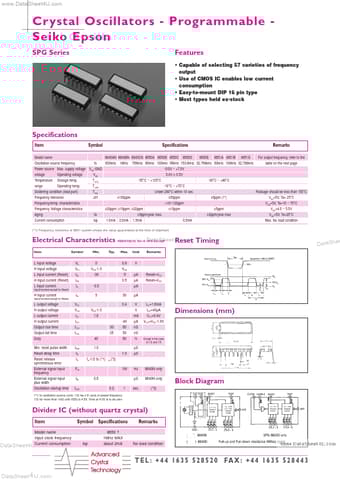

Additional preview pages of the SPG8640 datasheet.

Capable of selecting 57 varieties of frequency output.
Use of CMOS IC enables low current consumption.
Easy-to-mount DIP 16 pin type.
Most types held ex-stock Specifications Item Symbol Specifications Remarks Model name 8640AN 8640BN 8640CN 8650A 8650B 8650C 8650D 8650E 8651A 8651B 8651E For output frequency, refer to the Oscillation source frequency fo 600kHz 1MHz 769kHz 60kHz 100kHz 96kHz 153.6kHz 32.768kHz 60kHz 100kHz 32.768kHz table on the next page -0/.
