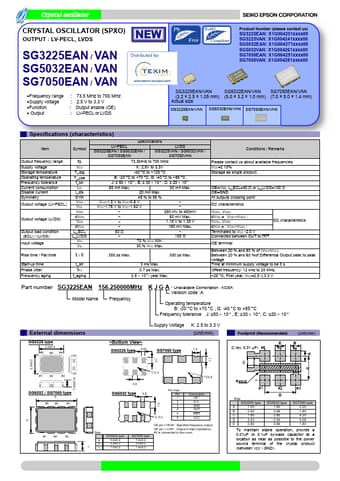

Crystal oscillator
CRYSTAL OSCILLATOR (SPXO)
OUTPUT : LV-PECL, LVDS
SG3225EAN / VAN SG5032EAN / VAN SG7050EAN / VAN
Frequency range Supply voltage Function Output
: 73.5 MHz to 700 MHz : 2.5 V to 3.3 V : Output enable (OE) : LV-PECL or LVDS
Product Number (please contact us) SG3225EAN: X1G004251xxxx00 SG3225VAN: X1G004241xxxx00 SG5032EAN: X1G004271xxxx00 SG5032VAN: X1G004261xxxx00 SG7050EAN: X1G004291xxxx00
SG7050VAN: X1G004281xxxx00
SG3225EAN/VAN
SG5032EAN/VAN SG7050EAN/VAN
(3.2 × 2.5 × 1.05 mm) (5.0 × 3.2 × 1.0 mm) (7.0 × 5.0 × 1.
