SG5032CCN - CRYSTAL OSCILLATOR

Download the SG5032CCN datasheet PDF. This datasheet also covers the SG5032CAN variant, as both devices belong to the same crystal oscillator family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SG5032CAN-Seiko.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
SG500Q Gas Discharge Tubes Littelfuse
SG5010 (SG5010 / SG505) Audio Oscillators ETC
SG5010 Programmable Audio Test System TeGam
SG5042B090 Surface Mounted Gas Discharge Tube Semiware
SG505 (SG5010 / SG505) Audio Oscillators ETC

Other Datasheets by Seiko Instruments

Part Number Description
SG5032CAN CRYSTAL OSCILLATOR
SG5032CBN CRYSTAL OSCILLATOR
SG5032EAN CRYSTAL OSCILLATOR
SG5032VAN CRYSTAL OSCILLATOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

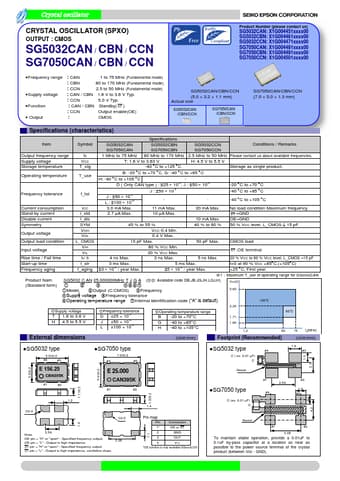

Crystal oscillator CRYSTAL OSCILLATOR (SPXO) OUTPUT : CMOS SG5032CAN / CBN / CCN SG7050CAN / CBN / CCN Product Number (please contact us) SG5032CAN: X1G004451xxxx00 SG5032CBN: X1G004461xxxx00 SG5032CCN: X1G004471xxxx00 SG7050CAN: X1G004481xxxx00 SG7050CBN: X1G004491xxxx00 SG7050CCN: X1G004501xxxx00 Frequency range Supply voltage Function  Output : CAN 1 to 75 MHz (Fundamental mode) : CBN 80 to 170 MHz (Fundamental mode) : CCN 2.5 to 50 MHz (Fundamental mode) : CAN / CBN 1.8 V to 3.6 V Typ. : CCN 5.0 V Typ. : CAN / CBN Standby( ST ) : CCN Output enable(OE) : CMOS SG5032CAN/CBN/CCN (5.0 × 3.2 × 1.1 mm) Actual size SG5032CAN /CBN/CCN SG7050CAN /CBN/CCN SG7050CAN/CBN/CCN (7.0 × 5.0 × 1.
