S-8232 BATTERY PROTECTION IC

S-8232 Description

S-8232 Series www.sii-ic.com © Seiko Instruments Inc., 1999-2015 BATTERY PROTECTION IC FOR 2-SERIAL-CELL PACK Rev.6.2_00 The S-8232 series is a lit.

S-8232 Features

* (1) Internal high-accuracy voltage detection circuit
* Overcharge detection voltage 3.85 V ± 25 mV to 4.60 V ± 25 mV Applicable in 5 mV step
* Overcharge release voltage 3.60 V ± 50 mV to 4.60 V ± 50 mV Applicable in 5 mV step (The overcharge release voltage can be selected with

S-8232 Applications

* Lithium-ion rechargeable battery packs
* Lithium- polymer rechargeable battery packs
* Package
* 8-Pin TSSOP Seiko Instruments Inc. 1 BATTERY PROTECTION IC FOR 2-SERIAL-CELL PACK S8232 Series
* Block Diagram Rev.6.2_00 VCC SENS Reference voltage 1
* +

📥 Download Datasheet

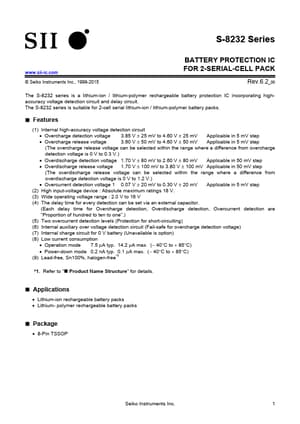

Preview of S-8232 PDF
