S-81240SG, S-81211SG HIGH PRECISION VOLTAGE REGULATOR

Seiko

Description

HIGH-PRECISION VOLTAGE REGULATOR S-812XXSG Series The S-812XXSG Series is a three-terminal positive voltage regulator made using the CMOS process.S.

📥 Download Datasheet

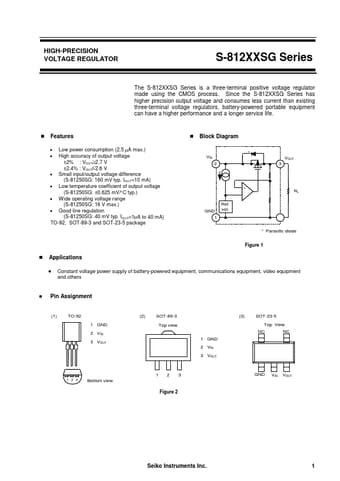

S-81240SG Datasheet Preview — This datasheet PDF includes multiple part numbers: S-81240SG, S-81211SG. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: S-81240SG, S-81211SG
Manufacturer: Seiko
File Size: 317.79 KB
Datasheet: S-81211SG-Seiko.pdf
Description: HIGH PRECISION VOLTAGE REGULATOR
Note: This datasheet PDF includes multiple part numbers: S-81240SG, S-81211SG.
Please refer to the document for exact specifications by model.

Features

* Block Diagram Low power consumption (2.5 A max. ) High accuracy of output voltage ±2% : VOUT2.7 V ±2.4% : VOUT2.6 V Small input/output voltage difference (S-81250SG: 160 mV typ. IOUT=10 mA) Low temperature coefficient of output voltage (S-81250SG: ±0.625 mV/C typ. ) Wide operating vo

Applications

* Figure 1 Constant voltage power supply of battery-powered equipment, communications equi
