S-24C512C - 2-WIRE SERIAL E2PROM

Seiko

📥 Download Datasheet

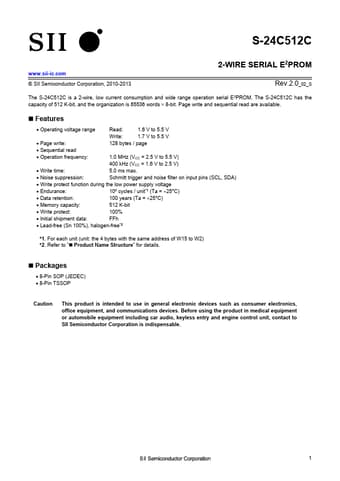

S-24C512C Datasheet Preview — Preview of S-24C512C PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	S-24C512C
Manufacturer	Seiko ↗
File Size	788.28 KB
Description	2-WIRE SERIAL E2PROM
Datasheet	S-24C512C-Seiko.pdf

S-24C512C Product details

Features

Operating voltage range Read: 1.6 V to 5.5 V Write: 1.7 V to 5.5 V.
Page write: 128 bytes / page.
Sequential read.
Operation frequency: 1.0 MHz (VCC = 2.5 V to 5.5 V) 400 kHz (VCC = 1.6 V to 2.5 V).
Write time: 5.0 ms max.
Noise suppression: Schmitt trigger and noise filter on input pins (SCL, SDA).
Write protect function during the low power supply voltage.
Endurance: 106 cycles / unit.
1 (Ta = +25°C).
