S-93C46A - CMOS SERIAL E2PROM

Seiko Instruments

📥 Download Datasheet

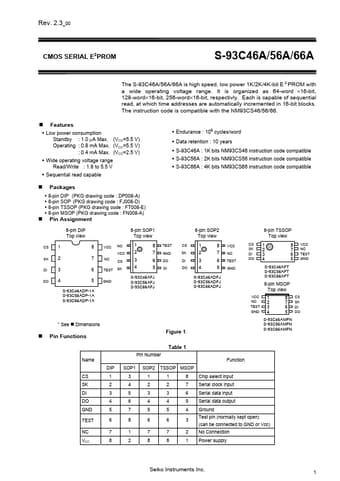

S-93C46A Datasheet Preview — Preview of S-93C46A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	S-93C46A
Manufacturer	Seiko ↗ Instruments
File Size	404.91 KB
Description	CMOS SERIAL E2PROM
Datasheet	S-93C46A-SeikoInstruments.pdf

S-93C46A Product details

Features

Low power consumption Standby : 1.0 µA Max. (VCC=5.5 V) Operating : 0.8 mA Max. (VCC=5.5 V) : 0.4 mA Max. (VCC=2.5 V) y Wide operating voltage range Read/Write : 1.8 to 5.5 V y Sequential read capable y Endurance : 106 cycles/word y Data retention : 10 years y S-93C46A : 1K bits NM93CS46 instruction code compatible y S-93C56A : 2K bits NM93CS56 instruction code compatible y S-93C66A : 4K bits NM93CS66 instruction code compatible.
Packages y 8-pin DIP (PKG drawing code : DP008-A) y 8-.
