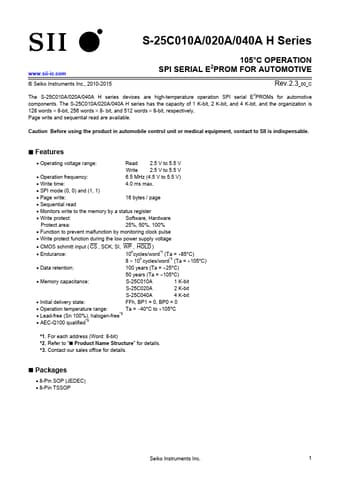

S-25C010A/020A/040A H Series www.sii-ic.com © Seiko Instruments Inc., 2010-2015 105°C OPERATION SPI SERIAL E2PROM FOR AUTOMOTIVE Rev.2.3_00_C The S.
1
CS.
1
Chip select input
2 SO Serial data output
3
WP.
1
Write protect input
4
GND
Ground
5 SI.
1 Serial data input
6
SCK.
Features
* Operating voltage range:
Read Write
2.5 V to 5.5 V 2.5 V to 5.5 V
* Operation frequency:
6.5 MHz (4.5 V to 5.5 V)
* Write time:
4.0 ms max.
* SPI mode (0, 0) and (1, 1)
* Page write:
16 bytes / page
* Sequential read
* Monitors wr
