S-1155 - HIGH RIPPLE-REJECTION LOW DROPOUT HIGH OUTPUT CURRENT CMOS VOLTAGE REGULATOR

Seiko Instruments

📥 Download Datasheet

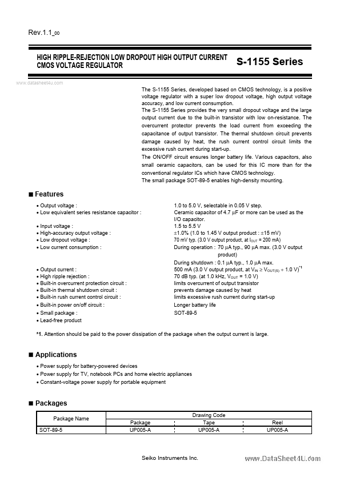

S-1155 Datasheet Preview — Preview of S-1155 PDF

Datasheet Details

Part number	S-1155
Manufacturer	Seiko Instruments
File Size	824.52 KB
Description	HIGH RIPPLE-REJECTION LOW DROPOUT HIGH OUTPUT CURRENT CMOS VOLTAGE REGULATOR
Datasheet	S-1155_SeikoInstruments.pdf

S-1155 Product details

Description

Shutdown pin No connection Input voltage pin Output voltage pin 1. Absolute Maximum Ratings Table 3 www.datasheet4u.com Rev.1.1_00 Parameter Input voltage Output voltage Power dissipation Operating ambient temperature Storage temperature Symbol VIN VON/OFF VOUT PD Topr

Features

s.
Output voltage :.
Low equivalent series resistance capacitor :.
Input voltage :.
High-accuracy output voltage :.
Low dropout voltage :.
Low current consumption : 1.0 to 5.0 V, selectable in 0.05 V step. Ceramic capacitor of 4.7 µF or more can be used as the I/O capacitor. 1.5 to 5.5 V ±1.0% (1.0 to 1.45 V output product : ±15 mV) 70 mV typ. (3.0 V output product, at IOUT = 200 mA) During operation : 70 µA typ. , 90 µA max. (3.0 V output pro.
