SUF505C, SUF501C 5.0AMP Surface Mount Super Fast Recovery Rectifiers

SUF505C Description

SUF501C THRU SUF505C Elektronische Bauelemente VOLTAGE 50V ~ 600V 5.0AMP Surface Mount Super Fast Recovery Rectifiers RoHS Compliant Product A suff.

SUF505C Applications

* Easy pick and place
* Built-in strain relief
* Super Fast switching speed under 35ns MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Metallurgically bonded construction
* Polarity: Color band denotes cathode end
* Mounting position: A

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SUF505C, SUF501C. Please refer to the document for exact specifications by model.

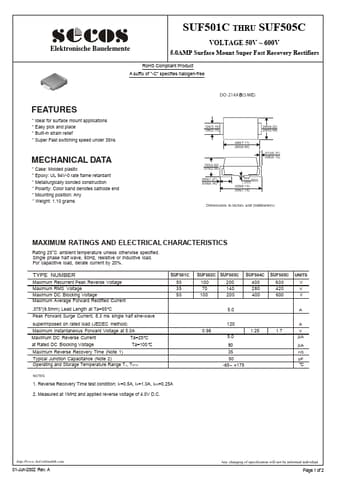

datasheet Preview Page 2

Datasheet Details

Part number
SUF505C, SUF501C
Manufacturer
SeCoS
File Size
337.11 KB
Datasheet
SUF501C-SeCoS.pdf
Description
5.0AMP Surface Mount Super Fast Recovery Rectifiers
Note
This datasheet PDF includes multiple part numbers: SUF505C, SUF501C.
Please refer to the document for exact specifications by model.
