SUF303B - 3.0 Amp High Efficiency Recovery Rectifiers

Download the SUF303B datasheet PDF (SUF301B included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 3.0 amp high efficiency recovery rectifiers.

Features

  • Ideal for surface mount.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SUF301B-SeCoS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SUF303B
Manufacturer SeCoS
File Size 253.91 KB
Description 3.0 Amp High Efficiency Recovery Rectifiers
Datasheet download datasheet SUF303B Datasheet

📁 Similar Datasheet

  • SUF3001 - Dual P-ch Trench MOSFET (AUK)
  • SUF30G - (SUF30G/J) ULTRAFAST EFFICIENT RECTIFIER (General Semiconductor)
  • SUF30G - ULTRAFAST EFFICIENT PLASTIC RECTIFIER (Shunye)
  • SUF30J - (SUF30G/J) ULTRAFAST EFFICIENT RECTIFIER (General Semiconductor)
  • SUF30J - ULTRAFAST EFFICIENT PLASTIC RECTIFIER (Shunye)
  • SUF-1000 - Cascadable pHEMT MMIC Amplifier (Sirenza Microdevices)
  • SUF-1000 - Cascadable pHEMT MMIC Amplifier (RF Micro Devices)
  • SUF-1033 - Cascadable PHEMT MMIC Amplifier (RF Micro Devices)
  • SUF-2000 - Cascadable pHEMT MMIC Amplifier (Sirenza Microdevices)
  • SUF-3000 - Cascadable pHEMT MMIC Amplifier (Sirenza Microdevices)
Other Datasheets by SeCoS
  • SUF303AM - Super Fast Recovery Rectifier
  • SUF303C - 3.0 Amp High Efficiency Recovery Rectifiers
  • SUF301AM - Super Fast Recovery Rectifier
  • SUF301B - 3.0 Amp High Efficiency Recovery Rectifiers
  • SUF301C - 3.0 Amp High Efficiency Recovery Rectifiers
  • SUF302AM - Super Fast Recovery Rectifier
  • SUF302B - 3.0 Amp High Efficiency Recovery Rectifiers
  • SUF302C - 3.0 Amp High Efficiency Recovery Rectifiers

Full PDF Text Transcription

Click to expand full text

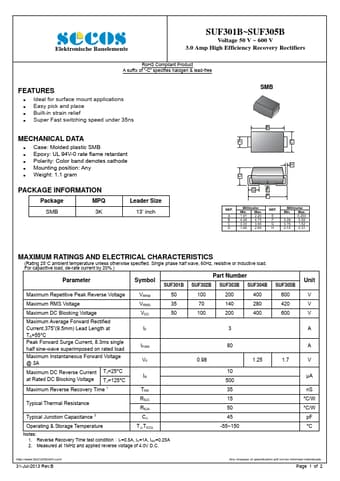

Elektronische Bauelemente SUF301B~SUF305B Voltage 50 V ~ 600 V 3.0 Amp High Efficiency Recovery Rectifiers RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free FEATURES  Ideal for surface mount applications  Easy pick and place  Built-in strain relief  Super Fast switching speed under 35ns MECHANICAL DATA  Case: Molded plastic SMB  Epoxy: UL 94V-0 rate flame retardant  Polarity: Color band denotes cathode  Mounting position: Any  Weight: 1.1 gram PACKAGE INFORMATION Package MPQ SMB 3K Leader Size 13’ inch SMB B AC H D GE F REF. A B C D Millimeter Min. Max. 1.91 2.20 4.06 4.75 3.30 3.94 1.95 2.65 REF. E F G H Millimeter Min. Max. - 0.203 5.08 5.59 0.76 1.52 0.15 0.
