SUF205B - 2.0 Amp High Efficiency Recovery Rectifiers

Download the SUF205B datasheet PDF. This datasheet also covers the SUF201B variant, as both devices belong to the same 2.0 amp high efficiency recovery rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • Ideal for surface mount.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SUF201B-SeCoS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SUF205B
Manufacturer SeCoS
File Size 230.88 KB
Description 2.0 Amp High Efficiency Recovery Rectifiers
Datasheet download datasheet SUF205B Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SUF2001 (SUF2001 - SUF2007) High Efficient Plastic Silicon Rectifier Gulf Semiconductor
SUF2001 Dual N-and P-channel Trench MSFET KODENSHI KOREA
SUF2002 (SUF2001 - SUF2007) High Efficient Plastic Silicon Rectifier Gulf Semiconductor
SUF2003 (SUF2001 - SUF2007) High Efficient Plastic Silicon Rectifier Gulf Semiconductor
SUF2004 (SUF2001 - SUF2007) High Efficient Plastic Silicon Rectifier Gulf Semiconductor

Other Datasheets by SeCoS

Part Number Description
SUF205A 2.0 Amp High Efficiency Recovery Rectifiers
SUF205ACR-C 2.0 Amp High Efficiency Recovery Rectifiers
SUF205AM Surface Mount Super Fast Recovery Rectifiers
SUF205JD Surface Mount Super Fast Recovery Rectifiers
SUF201A 2.0 Amp High Efficiency Recovery Rectifiers

Full PDF Text Transcription

Click to expand full text

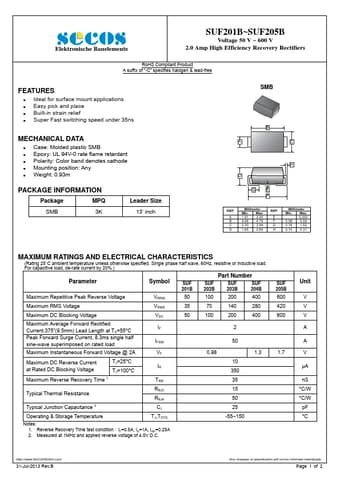

Elektronische Bauelemente SUF201B~SUF205B Voltage 50 V ~ 600 V 2.0 Amp High Efficiency Recovery Rectifiers RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free FEATURES  Ideal for surface mount applications  Easy pick and place  Built-in strain relief  Super Fast switching speed under 35ns MECHANICAL DATA  Case: Molded plastic SMB  Epoxy: UL 94V-0 rate flame retardant  Polarity: Color band denotes cathode  Mounting position: Any  Weight: 0.93m PACKAGE INFORMATION Package MPQ SMB 3K Leader Size 13’ inch SMB B AC H D GE F REF. A B C D Millimeter Min. Max. 1.91 2.20 4.06 4.75 3.30 3.94 1.95 2.65 REF. E F G H Millimeter Min. Max. - 0.203 5.08 5.59 0.76 1.52 0.15 0.
