SUF103A - 1.0 Amp High Efficiency Recovery Rectifiers

Download the SUF103A datasheet PDF. This datasheet also covers the SUF101A variant, as both devices belong to the same 1.0 amp high efficiency recovery rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • Ideal for surface mount.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SUF101A-SeCoS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SUF103A
Manufacturer SeCoS
File Size 315.75 KB
Description 1.0 Amp High Efficiency Recovery Rectifiers
Datasheet download datasheet SUF103A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SUF1002 Dual N-ch Trench MOSFET AUK
SUF140L Surface Mount ESD Capability Rectifiers Bruckewell
SUF15G (SUF15G/J) ULTRAFAST EFFICIENT RECTIFIER General Semiconductor
SUF15J (SUF15G/J) ULTRAFAST EFFICIENT RECTIFIER General Semiconductor
SUF160-D2 Surface Mount Super Fast Rectifiers Bruckewell

Other Datasheets by SeCoS

Part Number Description
SUF103ACR-C Super Fast Recovery Rectifiers
SUF103AM Super Fast Recovery Rectifiers
SUF103AR-C 1Amp High Efficiency Recovery Rectifiers
SUF103DT 1Amp Surface Mount Glass Passivated Superfast Rectifier
SUF103JD Super Fast Recovery Rectifiers

Full PDF Text Transcription

Click to expand full text

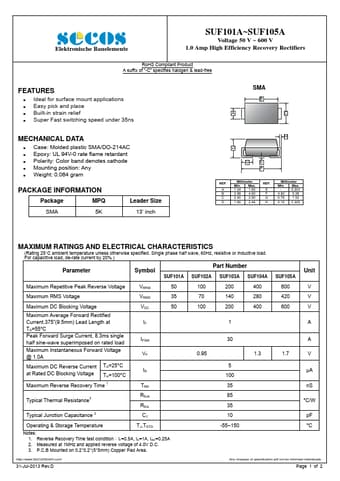

Elektronische Bauelemente SUF101A~SUF105A Voltage 50 V ~ 600 V 1.0 Amp High Efficiency Recovery Rectifiers RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free FEATURES  Ideal for surface mount applications  Easy pick and place  Built-in strain relief  Super Fast switching speed under 35ns MECHANICAL DATA  Case: Molded plastic SMA/DO-214AC  Epoxy: UL 94V-0 rate flame retardant  Polarity: Color band denotes cathode  Mounting position: Any  Weight: 0.064 gram PACKAGE INFORMATION Package MPQ SMA 5K Leader Size 13’ inch SMA B AC H D GE F REF. A B C D Millimeter Min. Max. 1.24 1.65 3.99 4.60 2.40 2.90 1.90 2.44 REF. E F G H Millimeter Min. Max. - 0.203 4.80 5.28 0.76 1.52 0.15 0.
