STT3930N - N-Channel MOSFET

Description

These miniature surface mount MOSFETs utilize a high cell density trench process to provide low RDS(on) and to ensure minimal power loss and heat dissipation.

Features

  • Low RDS(on) provides higher efficiency and extends battery life Low thermal impedance copper leadframe TSOP-6 saves board space Fast switching speed High performance trench technology.

📥 Download Datasheet

Datasheet Details

Part number STT3930N
Manufacturer SeCoS
File Size 65.93 KB
Description N-Channel MOSFET
Datasheet download datasheet STT3930N Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
STT3922N N-channel MOSFET SeCoS Halbleitertechnologie
STT320 Thyristor-Thyristor Modules Sirectifier Semiconductors
STT3414 N-Channel MOSFET SamHop Microelectronics
STT3416 N-Channel Logic Level Enhancement Mode Field Effect Transistor SamHop Microelectronics
STT3418 N-Channel MOSFET SamHop Microelectronics

Other Datasheets by SeCoS

Part Number Description
STT3921P P-Channel MOSFET
STT3962N N-Channel MOSFET
STT3962NE N-Channel MOSFET
STT3981 P-Channel MOSFET
STT3998N Dual N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

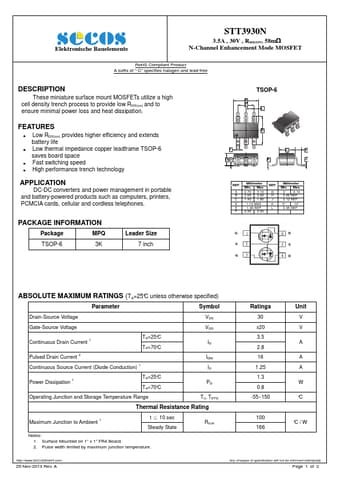

Elektronische Bauelemente STT3930N 3.5A , 30V , RDS(ON) 58mΩ N-Channel Enhancement Mode MOSFET RoHS Compliant Product A suffix of “-C” specifies halogen and lead-free DESCRIPTION These miniature surface mount MOSFETs utilize a high cell density trench process to provide low RDS(on) and to ensure minimal power loss and heat dissipation. FEATURES Low RDS(on) provides higher efficiency and extends battery life Low thermal impedance copper leadframe TSOP-6 saves board space Fast switching speed High performance trench technology APPLICATION DC-DC converters and power management in portable and battery-powered products such as computers, printers, PCMCIA cards, cellular and cordless telephones.
