STT3434 N-Channel MOSFET

STT3434 Description

STT3434 Elektronische Bauelemente 6.1 A, 30 V, RDS(ON) 34 mΩ N-Channel Enhancement Mode Power Mos.FET RoHS Compliant Product A suffix of “-C” specifi.
The STT3434 uses advanced trench technology to provide excellent on-resistance and low gate charge.

STT3434 Applications

* APPLICATIONS z z Low on-resistance Capable of 2.5V gate drive PACKAGE DIMENSIONS REF. A A1 A2 c D E E1 Millimeter Min. Max. 1.10 Max 0 0.10 0.70 1.00 0.12 Ref 2.70 3.10 2.60 3.00 1.40 1.80 REF. L L1 θ b e e1 Millimeter Min. Max. 0.45 Ref 0.60 Ref 0° 10° 0.30 0.50 0.95 Ref 1.90 Ref ABSOLUTE

📥 Download Datasheet

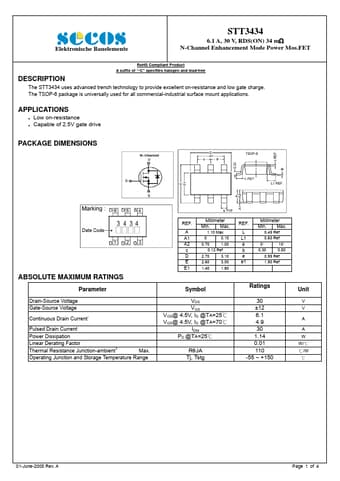

Preview of STT3434 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STT3434
Manufacturer
SeCoS
File Size
877.23 KB
Datasheet
STT3434-SeCoS.pdf
Description
N-Channel MOSFET
