STP1117S12 - 1.0A Low Dropout Positive Adjustable or Fixed-Mode Regulator

Download the STP1117S12 datasheet PDF. This datasheet also covers the STP1117SA variant, as both devices belong to the same 1.0a low dropout positive adjustable or fixed-mode regulator family and are provided as variant models within a single manufacturer datasheet.

Description

The STP1117Sxx series of positive adjustable and fixed regulators are designed to provide 1A with high efficiency.

All internal circuitry is designed to operate down to 1.4V input to output differential.

On-chip trimming adjusts the reference voltage to 1%.

Features

  • Adjustable or Fixed Output 1.2V,1.8V,2.5V,3.3V Output Current of 1A Low Dropout, 1.2 V typ. at 1A Output Current 0.04% Line Regulation 0.2 % Load Regulation 100% Thermal Limit Burn-In Fast Transient Response.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (STP1117SA-SeCoS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number STP1117S12
Manufacturer SeCoS
File Size 443.81 KB
Description 1.0A Low Dropout Positive Adjustable or Fixed-Mode Regulator
Datasheet download datasheet STP1117S12 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
STP110N10F7 N-CHANNEL POWER MOSFET STMicroelectronics
STP110N10F7 N-Channel MOSFET INCHANGE
STP110N55F6 N-CHANNEL POWER MOSFET STMicroelectronics
STP110N7F6 N-CHANNEL POWER MOSFET STMicroelectronics
STP110N8F6 N-CHANNEL POWER MOSFET STMicroelectronics

Other Datasheets by SeCoS

Part Number Description
STP1117S18 1.0A Low Dropout Positive Adjustable or Fixed-Mode Regulator
STP1117S25 1.0A Low Dropout Positive Adjustable or Fixed-Mode Regulator
STP1117S33 1.0A Low Dropout Positive Adjustable or Fixed-Mode Regulator
STP1117SA 1.0A Low Dropout Positive Adjustable or Fixed-Mode Regulator

Full PDF Text Transcription

Click to expand full text

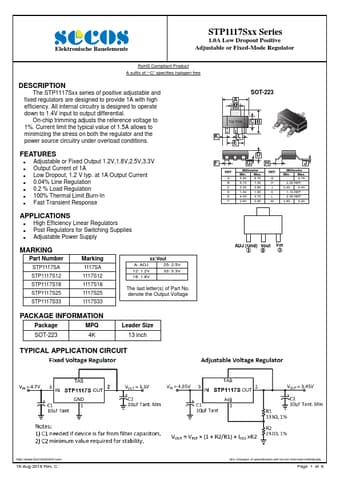

Elektronische Bauelemente STP1117Sxx Series 1.0A Low Dropout Positive Adjustable or Fixed-Mode Regulator RoHS Compliant Product A suffix of “-C” specifies halogen free DESCRIPTION The STP1117Sxx series of positive adjustable and fixed regulators are designed to provide 1A with high efficiency. All internal circuitry is designed to operate down to 1.4V input to output differential. On-chip trimming adjusts the reference voltage to 1%. Current limit the typical value of 1.5A allows to minimizing the stress on both the regulator and the power source circuitry under overload conditions. FEATURES Adjustable or Fixed Output 1.2V,1.8V,2.5V,3.3V Output Current of 1A Low Dropout, 1.2 V typ. at 1A Output Current 0.04% Line Regulation 0.
