SPR120N03S-C N-Channel Shielded Gate Trench Power MOSFET

SPR120N03S-C Description

Elektronische Bauelemente SPR120N03S-C 120A, 30V, RDS(ON) 2.2mΩ N-Channel Shielded Gate Trench Power MOSFET RoHS Compliant Product A suffix of “-C” .
The SPR120N03S-C is the Shielded Gate Technology N-Ch MOSFETs with extreme high cell density, which provide excellent RDS(ON) and gate charge for most.

SPR120N03S-C Features

* Shielded Gate Trench Technology
* Lower Gate Charge
* Green Device Available MARKING PR-8PP 120N03S   = Date Code PACKAGE INFORMATION Package MPQ PR-8PP 3K Leader Size 13 inch ORDER INFORMATION Part Number Type SPR120N03S-C Lead (Pb)-free and Halogen-free S D S D

📥 Download Datasheet

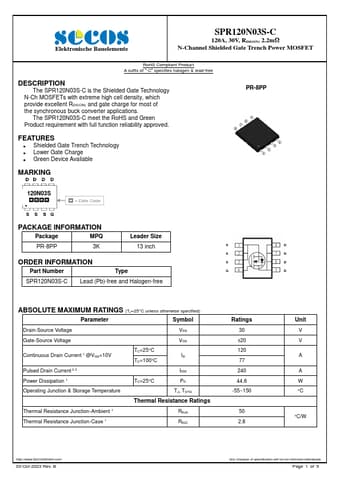

Preview of SPR120N03S-C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SPR120N03S-C
Manufacturer
SeCoS
File Size
0.96 MB
Datasheet
SPR120N03S-C-SeCoS.pdf
Description
N-Channel Shielded Gate Trench Power MOSFET
