SMUN5213DW, SMUN5211DW NPN Multi-Chip Built-in Resistors Transistor

SMUN5213DW Description

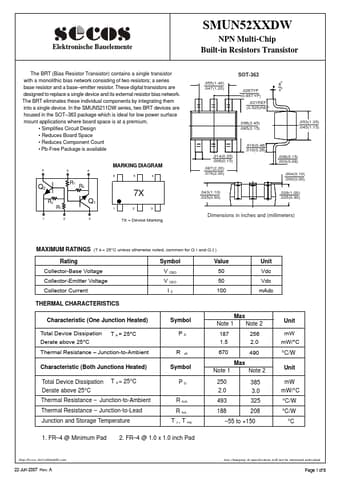

Elektronische Bauelemente SMUN52XXDW NPN Multi-Chip Built-in Resistors Transistor The BRT (Bias Resistor Transistor) contains a single transistor wi.

SMUN5213DW Features

* TS) Figure 14. Output Capacitance 50 0.001 0 12 34 56 78 9 10 V in , INPUT VOLTAGE (VOLTS) Figure 15. Output Current versus Input oltage 100 V in , INPUT VOLTAGE (VOLTS) 10 1 0.1 0 10 20 30 40 50 I C , COLLECTOR CURRENT (mA) Figure 16. Input Voltage versus Output Current http://www.

SMUN5213DW Applications

* where board space is at a premium.
* Simplifies Circuit Design
* Reduces Board Space
* Reduces Component Count
* Pb-Free Package is available 6 54 Q2 R1 R2 R2 R1 Q1 12 3 MARKING DIAGRAM 6 54 7X 1 23 7X = Device Marking .055(1.40) .047(1.20) SOT-363 .026TYP (0
