SMF505C, SMF501C - 5.0 Amp Surface Mount Silicon Fast Recovery Rectifiers

Name: SMF505C
SKU: SMF505C-1592709

SeCoS

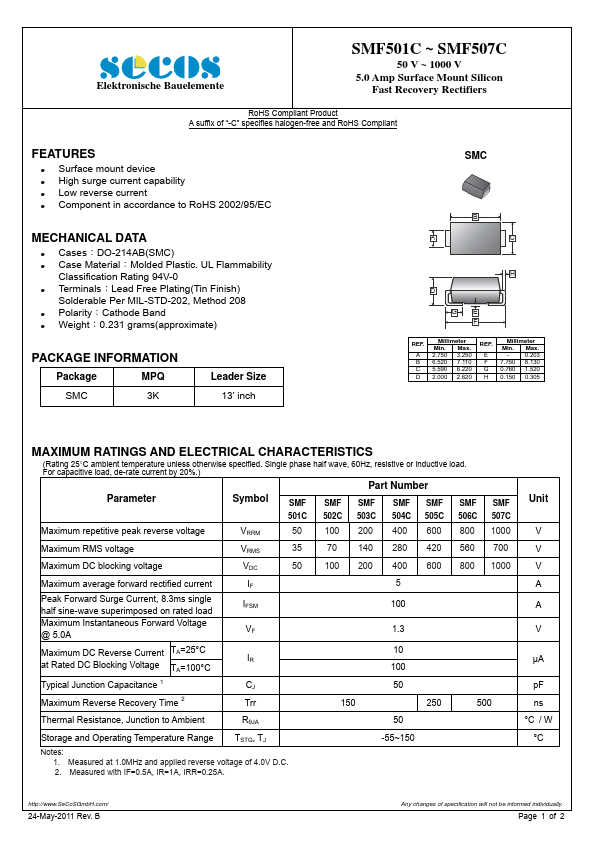

The SMF505C by SeCoS is a 5.0 Amp Surface Mount Silicon Fast Recovery Rectifiers. Below is the official datasheet preview.

Datasheet Details

Part number	SMF505C, SMF501C
Manufacturer	SeCoS
File Size	228.62 KB
Description	5.0 Amp Surface Mount Silicon Fast Recovery Rectifiers
Datasheet	SMF501C-SeCoS.pdf
Note	This datasheet PDF includes multiple part numbers: SMF505C, SMF501C. Please refer to the document for exact specifications by model.

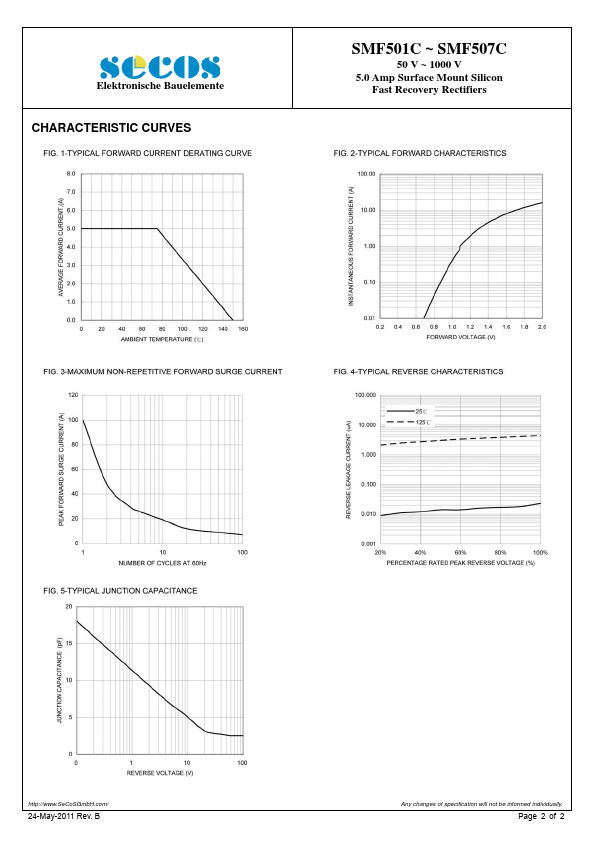

Additional preview pages of the SMF505C datasheet.
