SCD33, SCD32 Schottky Barrier Rectifiers

SCD33 Description

Elektronische Bauelemente SCD32 THRU SCD36 VOLTAGE 20V ~ 60V 3.0 AMP Surf ace Mount Schottky Barrier Rectifiers RoHS Compliant Product A suffix of ".

SCD33 Features

* Plastic package has Underwriters Laboratory Flammability
* Classification 94V-0
* Low profile package
* Built-in strain relief
* Metal to silicon rectifier , majority carrier conduction
* Low power loss , High efficiency
* High current capability
* High surge capaci

SCD33 Applications

* 0.091(2.30) 0.083(2.10) .181(4.60) .173(4.40) .002(0.05) R0.020(0.50) 0.049(1.25) 0.033(0.85) 0.049(1.25) 0.033(0.85) 0.049(1.25) 0.033(0.85) MECHANICAL DATA
* Case : Packed with FRP substrate and epoxy underfilled
* Terminals : Solder plated , solderable per MIL-STD-750, Method 2026

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SCD33, SCD32. Please refer to the document for exact specifications by model.

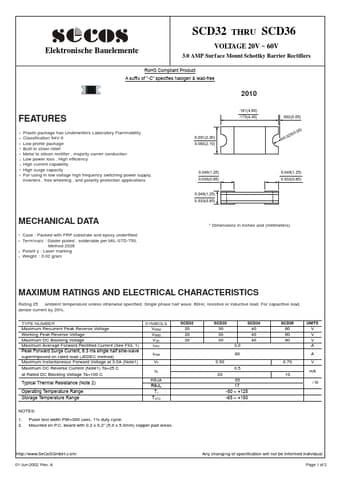

datasheet Preview Page 2

Datasheet Details

Part number
SCD33, SCD32
Manufacturer
SeCoS
File Size
263.53 KB
Datasheet
SCD32-SeCoS.pdf
Description
Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SCD33, SCD32.
Please refer to the document for exact specifications by model.
