S4AF24A - TVS

Download the S4AF24A datasheet PDF. This datasheet also covers the S4AF5.0A variant, as both devices belong to the same tvs family and are provided as variant models within a single manufacturer datasheet.

Features

  • Constructed with Glass Passivated Die 400W peak pulse power Dissipation Excellent clamping capability Very fast response time Component in accordance to RoHS 2002/95/EC SMAF.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (S4AF5.0A-SeCoS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number S4AF24A
Manufacturer SeCoS
File Size 199.30 KB
Description TVS
Datasheet download datasheet S4AF24A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
S4A Surface Mount Rectifier Taiwan Semiconductor

Other Datasheets by SeCoS

Part Number Description
S4AF20A TVS
S4AF22A TVS
S4AF26A TVS
S4AF28A TVS
S4AF10A TVS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

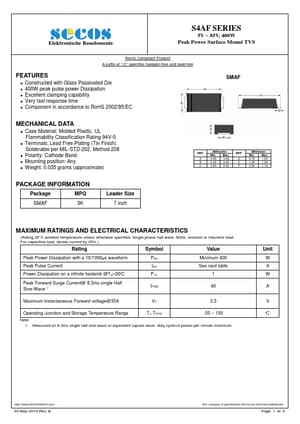

Elektronische Bauelemente S4AF SERIES 5V ~ 85V, 400W Peak Power Surface Mount TVS RoHS Compliant Product A suffix of “-C” specifies halogen-free and lead-free FEATURES Constructed with Glass Passivated Die 400W peak pulse power Dissipation Excellent clamping capability Very fast response time Component in accordance to RoHS 2002/95/EC SMAF MECHANICAL DATA Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Terminals: Lead Free Plating (Tin Finish). Solderable per MIL-STD-202, Method 208 Polarity: Cathode Band Mounting position: Any Weight: 0.035 grams (approximate) REF. A B C Millimeter Min. Max. 3.95 4.60 2.25 2.95 4.80 5.60 REF. D E F Millimeter Min. Max. 0.75 1.50 1.25 1.65 0.90 1.
