KSC815 - NPN Plastic-Encapsulated Transistor

Features

  • Low Collector Current Complementary To KSA539 Low Frequency Amplifier & High Frequency Oscillator TO-92.

📥 Download Datasheet

Datasheet Details

Part number KSC815
Manufacturer SeCoS
File Size 65.09 KB
Description NPN Plastic-Encapsulated Transistor
Datasheet download datasheet KSC815 Datasheet

📁 Similar Datasheet

  • KSC815 - NPN Silicon Transistor (Samsung semiconductor)
  • KSC815 - NPN Epitaxial Silicon Transistor (Fairchild Semiconductor)
  • KSC815 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • KSC838 - NPN Silicon Transistor (Samsung semiconductor)
  • KSC838 - NPN Silicon Transistor (Fairchild Semiconductor)
  • KSC839 - NPN Silicon Transistor (Samsung semiconductor)
  • KSC839 - NPN Silicon Transistor (Fairchild Semiconductor)
  • KSC853 - NPN Silicon Transistor (Samsung semiconductor)
  • KSC-WA100 - Car Stereo (Kenwood)
  • KSC-WA1001 - Car Hi-Fi (Kenwood)
Other Datasheets by SeCoS

Full PDF Text Transcription

Click to expand full text

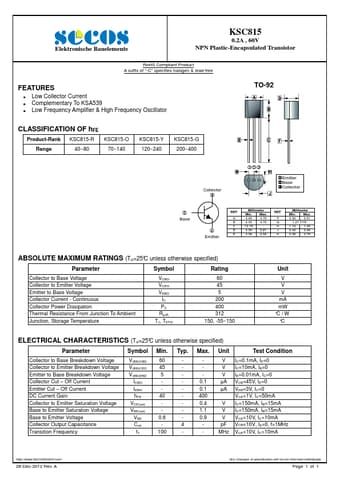

Elektronische Bauelemente KSC815 0.2A , 60V NPN Plastic-Encapsulated Transistor RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free FEATURES Low Collector Current Complementary To KSA539 Low Frequency Amplifier & High Frequency Oscillator TO-92 CLASSIFICATION OF hFE Product-Rank KSC815-R KSC815-O Range 40~80 70~140 KSC815-Y 120~240 KSC815-G 200~400 2 Base Collector 3 1Emitter 2Base 3Collector 1 Emitter REF. A B C D E Millimeter Min. Max. 4.40 4.70 4.30 4.70 12.70 - 3.30 3.81 0.36 0.56 REF. F G H J K Millimeter Min. Max. 0.30 0.51 1.27 TYP. 1.10 1.40 2.42 2.66 0.36 0.
