GBL01 - 4.0 Amp Glass Passivited Bridge Rectifiers

Download the GBL01 datasheet PDF. This datasheet also covers the GBL005 variant, as both devices belong to the same 4.0 amp glass passivited bridge rectifiers family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Surge overload rating - 125 amperes peak Ideal for printed circuit board The plastic material has Underwriters Laboratory flammability classification 94V-0 Mounting position: Any 2GBJ REF. A B C D E F Millimeter Min. Max. 19.6 10.7 20.6 11.2 3.4 3.6 12.7 14.2 2.5x 45° 2.3 2.7 REF. G H I J K Millimeter Min. Max. 1.3 1.5 0.9 1.1 0.9 1.14 0.38 0.51 4.8 5.3.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GBL005-SeCoS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number GBL01
Manufacturer SeCoS
File Size 788.60 KB
Description 4.0 Amp Glass Passivited Bridge Rectifiers
Datasheet download datasheet GBL01 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GBL01 GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER General Semiconductor
GBL01 Glass Passivated Chip Single-phase Bridge Rectifier First Silicon
GBL01 Single Phase Glass Passivated Silicon Bridge Rectifier GeneSiC
GBL01 Glass Passivated Single Phase Bridge Rectifiers JGD
GBL01 Silicon Bridge Rectifiers GME

Other Datasheets by SeCoS

Part Number Description
GBL005 4.0 Amp Glass Passivited Bridge Rectifiers
GBL02 4.0 Amp Glass Passivited Bridge Rectifiers
GBL04 4.0 Amp Glass Passivited Bridge Rectifiers
GBL06 4.0 Amp Glass Passivited Bridge Rectifiers
GBL08 4.0 Amp Glass Passivited Bridge Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

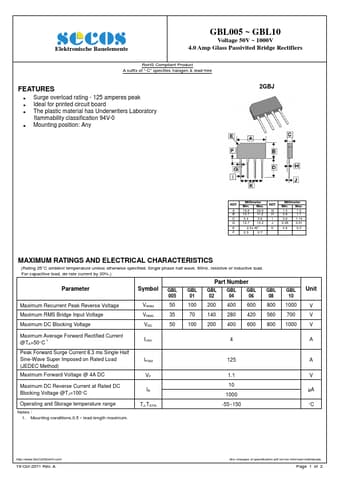

Elektronische Bauelemente GBL005 ~ GBL10 Voltage 50V ~ 1000V 4.0 Amp Glass Passivited Bridge Rectifiers RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free FEATURES Surge overload rating - 125 amperes peak Ideal for printed circuit board The plastic material has Underwriters Laboratory flammability classification 94V-0 Mounting position: Any 2GBJ REF. A B C D E F Millimeter Min. Max. 19.6 10.7 20.6 11.2 3.4 3.6 12.7 14.2 2.5x 45° 2.3 2.7 REF. G H I J K Millimeter Min. Max. 1.3 1.5 0.9 1.1 0.9 1.14 0.38 0.51 4.8 5.3 MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS (Rating 25°C ambient temperature unless otherwise specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, de-rate current by 20%.
