DTC144EUA - NPN Digital Transistors

Product Overview

SeCoS

📥 Download Datasheet

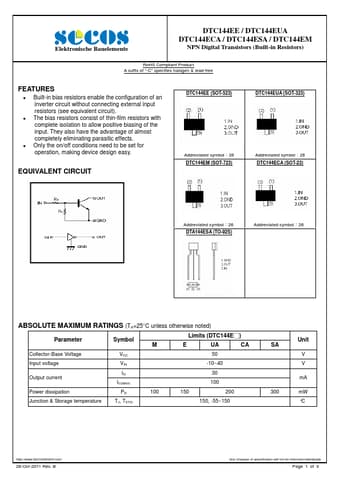

DTC144EUA NPN Digital Transistors by SeCoS - Datasheet Preview — Datasheet preview – DTC144EUA

Datasheet Details

Part number	DTC144EUA
Manufacturer	SeCoS
File Size	213.63 KB
Description	NPN Digital Transistors
Datasheet	DTC144EUA Datasheet
Note	This datasheet PDF includes multiple part numbers: DTC144EUA, DTC144EE. Please refer to the document for exact specifications by model.
Additional preview pages of the DTC144EUA datasheet.

Product details

Features

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. Only the on/off conditions need to be set for operation, making device design easy.
