DTC143XCA - NPN Digital Transistors

Product Overview

SeCoS

Part number	DTC143XCA
Manufacturer	SeCoS
File Size	150.35 KB
Description	NPN Digital Transistors
Datasheet	DTC143XCA Datasheet
Note	This datasheet PDF includes multiple part numbers: DTC143XCA, DTC143XE. Please refer to the document for exact specifications by model.

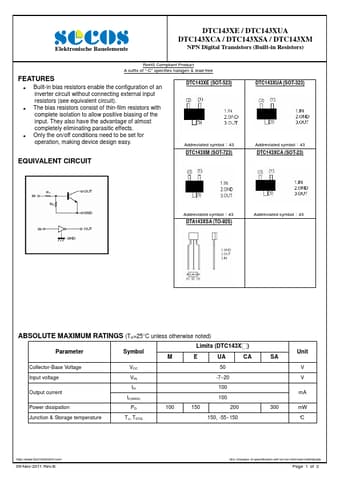

Additional preview pages of the DTC143XCA datasheet.

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. Only the on/off conditions need to be set for operation, making device design easy. DTC143XE (SOT-523) Addreviated symbol：43 DTC143XM (SOT-723).
