DTA114YUA - PNP Digital Transistors

Product Overview

SeCoS

Part number	DTA114YUA
Manufacturer	SeCoS
File Size	153.12 KB
Description	PNP Digital Transistors
Datasheet	DTA114YUA Datasheet
Note	This datasheet PDF includes multiple part numbers: DTA114YUA, DTA114YE. Please refer to the document for exact specifications by model.

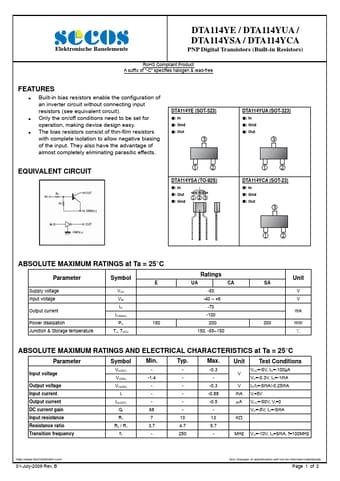

Additional preview pages of the DTA114YUA datasheet.

Built-in bias resistors enable the configuration of an inverter circuit without connecting input resistors (see equivalent circuit).
Only the on/off conditions need to be set for operation, making device design easy.
The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. DTA114YE (SOT-523) : In : Gnd.
: Out DTA114YUA (SOT-323) : I.
