DTA114EUA - PNP Digital Transistors

Product Overview

SeCoS

📥 Download Datasheet

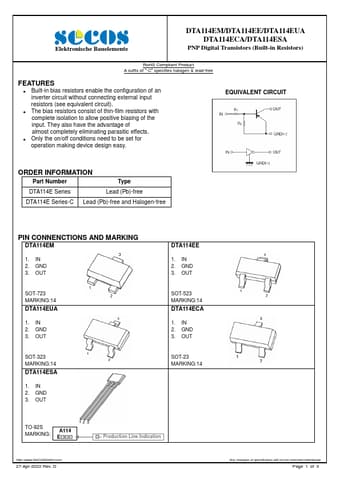

DTA114EUA PNP Digital Transistors by SeCoS - Datasheet Preview — Datasheet preview – DTA114EUA

Datasheet Details

Part number	DTA114EUA
Manufacturer	SeCoS
File Size	367.06 KB
Description	PNP Digital Transistors
Datasheet	DTA114EUA Datasheet
Note	This datasheet PDF includes multiple part numbers: DTA114EUA, DTA114EM. Please refer to the document for exact specifications by model.
Additional preview pages of the DTA114EUA datasheet.

Product details

Features

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
Only the on/off conditions need to be set for operation making device design easy.
