D25SB80, D25SB10 - (D25SB10 - D25SB100) Molding Single-Phase Bridge Rectifier

SeCoS

Datasheet Details

Part number	D25SB80, D25SB10
Manufacturer	SeCoS
File Size	411.90 KB
Description	(D25SB10 - D25SB100) Molding Single-Phase Bridge Rectifier

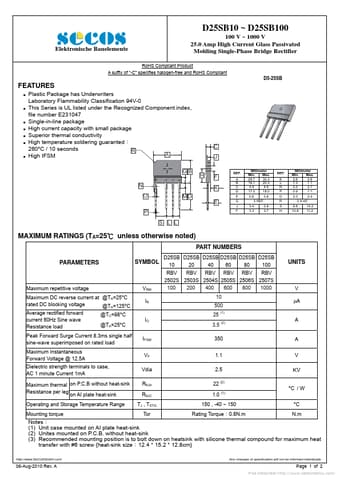

Datasheet	D25SB10_SeCoS.pdf
Note	This datasheet PDF includes multiple part numbers: D25SB80, D25SB10. Please refer to the document for exact specifications by model.

Plastic Package has Underwriters Laboratory Flammability Classification 94V-0 This Series is UL listed under the Recognized Component index, file number E231047 Single-in-line package High current capacity with small package Superior thermal conductivity High temperature soldering guaranted： 260°C / 10 seconds R A High IFSM GB N O P S L L MD H C J F K E REF. A B C D E G J F Millimeter Min. Max. 29.7 30.3 19.7 20.3 4.4 4.8 17.0 18.0 0.6 0.8 5 REF. 3.
