BZX55B2V4 - Glass Zener Voltage Regulators

SeCoS

📥 Download Datasheet

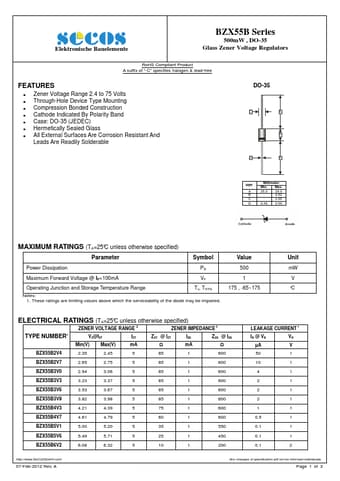

BZX55B2V4 Datasheet Preview — Preview of BZX55B2V4 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BZX55B2V4
Manufacturer	SeCoS
File Size	144.89 KB
Description	Glass Zener Voltage Regulators
Datasheet	BZX55B2V4-SeCoS.pdf

BZX55B2V4 Product details

Features

Zener Voltage Range 2.4 to 75 Volts Through-Hole Device Type Mounting Compression Bonded Construction Cathode Indicated By Polarity Band Case: DO-35 (JEDEC) Hermetically Sealed Glass All External Surfaces Are Corrosion Resistant And Leads Are Readily Solderable DO-35 CA B DA REF. A B C D Millimeter Min. Max. 25.0 29.9 - 4.50 - 2.00 0.46 0.56.
