Datasheet4U Logo Datasheet4U.com

2SC2655 - NPN Transistor

Features

  • TO-92MOD A D Low saturation voltage：VCE(sat)=0.5V(Max)(IC=1A) High speed switching time：tstg=1μs(Typ. ) Complementary to 2SA1020 K E B.

📥 Download Datasheet

Datasheet Details

Part number 2SC2655
Manufacturer SeCoS
File Size 237.33 KB
Description NPN Transistor
Datasheet download datasheet 2SC2655 Datasheet

📁 Similar Datasheet

  • 2SC2655 - Silicon NPN TRANSISTOR (Toshiba Semiconductor)
  • 2SC2655 - NPN Transistor (INCHANGE)
  • 2SC2655 - NPN SILICON TRANSISTOR (UTC)
  • 2SC2650 - Silicon NPN Transistor (Toshiba)
  • 2SC2650 - Silicon NPN Power Transistor (INCHANGE)
  • 2SC2652 - Silicon NPN Transistor (Toshiba)
  • 2SC2653 - NPN Transistor (Panasonic)
  • 2SC2653H - Silicon NPN Power Transistor (Inchange Semiconductor)
  • 2SC2653H - NPN Transistor (Panasonic)
  • 2SC2654 - SILICON POWER TRANSISTOR (SavantIC)
Other Datasheets by SeCoS
  • 2SC2655L - NPN Transistor
  • 2SC2668 - NPN Plastic-Encapsulated Transistor
  • 2SC2688 - NPN Transistor
  • 2SC2001 - NPN Plastic Encapsulated Transistor
  • 2SC2120 - NPN Plastic Encapsulated Transistor
  • 2SC2216 - NPN Transistor
  • 2SC2229 - NPN Transistor
  • 2SC2235 - NPN Silicon General Purpose Transistor

Full PDF Text Transcription

Click to expand full text

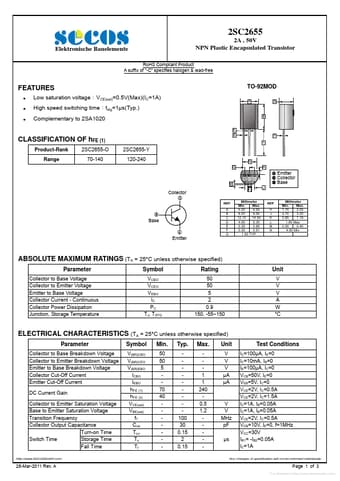

2SC2655 Elektronische Bauelemente 2A , 50V NPN Plastic Encapsulated Transistor RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free FEATURES    TO-92MOD A D Low saturation voltage：VCE(sat)=0.5V(Max)(IC=1A) High speed switching time：tstg=1μs(Typ.) Complementary to 2SA1020 K E B CLASSIFICATION OF hFE (1) Product-Rank Range 2SC2655-O 70-140 2SC2655-Y 120-240 F C N G H M  Emitter  Collector  Base L Millimeter Min. Max. 5.50 6.50 8.00 9.00 12.70 14.50 4.50 5.30 0.35 0.65 0.30 0.51 1.50 TYP. J Collector  REF. A B C D E F G REF. H J K L M N  Base  Emitter Millimeter Min. Max. 1.70 2.05 2.70 3.20 0.85 1.15 1.60 Max 0.00 0.40 4.
Published: |
