1A7 - 1.0 AMP Silicon Rectifiers

Features

  • . Low Forward Voltage Drop . High Current Capability . High Reliability . High Surge Current Capability.

📥 Download Datasheet

Datasheet Details

Part number 1A7
Manufacturer SeCoS
File Size 661.16 KB
Description 1.0 AMP Silicon Rectifiers
Datasheet download datasheet 1A7 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1A7 1.0A STANDARD DIODE WON-TOP
1A7 GLASS PASSIVATED JUNCTION SILICON RECTIFIER EIC
1A7 1 Amp Miniature Plastic Silicon Rectifier Micro Commercial Components
1A7 MINIATURE PLASTIC SILICON RECTIFIER Pan Jit International Inc.
1A7 MINIATURE GENERAL PURPOSE PLASTIC RECTIFIER GOOD-ARK Electronics

Other Datasheets by SeCoS

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

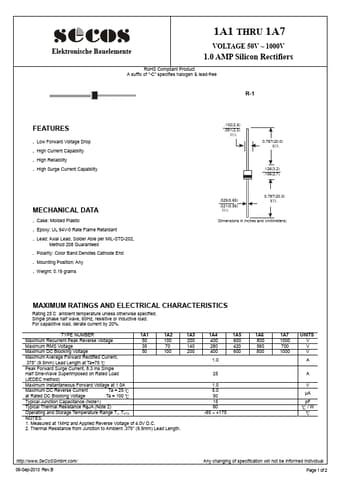

1A1 THRU 1A7 Elektronische Bauelemente VOLTAGE 50V ~ 1000V 1.0 AMP Silicon Rectifiers RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free R-1 FEATURES . Low Forward Voltage Drop . High Current Capability . High Reliability . High Surge Current Capability MECHANICAL DATA . Case: Molded Plastic . Epoxy: UL 94V-0 Rate Flame Retardant . Lead: Axial Lead, Solder Able per MIL-STD-202, Method 208 Guaranteed . Polarity: Color Band Denotes Cathode End . Mounting Position: Any . Weight: 0.19 grams .102(2.6) .091(2.3) DIA. 0.787(20.0) MIN. .126(3.2) .106(2.7) .025(0.65) .021(0.55) DIA. 0.787(20.0) MIN. Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 CO ambient temperature unless otherwise specified.
