STT2602 - N-Channel Enhancement Mode Power MosFET

Description

The STT2602 utiltzed advance processing techniques to achieve the lowest possible on-resistance, extermely efficient and cost-effectiveness device.

The STT2602 is universally used for all commercial-industrial applications.

Features

  • Low On-Resistance.
  • Capable of 2.5V Gate Drive D D 5 S 4 6 D REF. A A1 A2 c D E E1 Date Code 2602 G 1 D 2 D 3 G S Millimeter Min. Max. 1.10 MAX. 0 0.10 0.70 1.00 0.12 REF. 2.70 3.10 2.60 3.00 1.40 1.80 REF. L L1 b e e1 Millimeter Min. Max. 0.45 REF. 0.60 REF. 0° 10° 0.30 0.50 0.95 REF. 1.90 REF. Absolute Maximum Ratings www. DataSheet4U. com Parameter Symbol VDS VGS Ratings 20 ± 12 Unit V V A A A W W/ C o o Drain-Source Voltage Gate-Source Voltage Continuous Drain Current,.

📥 Download Datasheet

Datasheet Details

Part number STT2602
Manufacturer SeCoS Halbleitertechnologie GmbH
File Size 610.21 KB
Description N-Channel Enhancement Mode Power MosFET
Datasheet download datasheet STT2602 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
STT2605-C P-Channel Enhancement Mode Power MOSFET SeCoS
STT200 Thyristor Sirectifier Semiconductors
sTT2200N16P55 Soft starter Infineon
sTT2200N18P55 Soft starter Infineon
STT253 Thyristor Sirectifier Semiconductors

Other Datasheets by SeCoS Halbleitertechnologie GmbH

Part Number Description
STT2603 P-Channel Enhancement Mode Power MosFET
STT2604 N-Channel Enhancement Mode Power MosFET
STT2605 P-Channel Enhancement Mode Power MosFET
STT2622 N-Channel Enhancement Mode Power MosFET

Full PDF Text Transcription

Click to expand full text

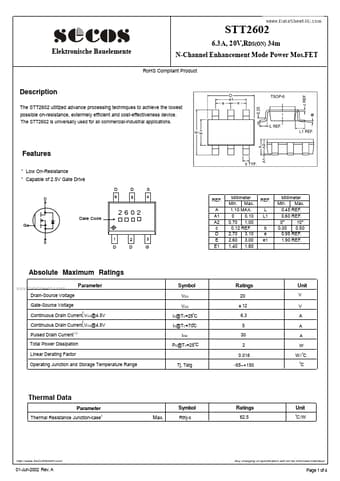

STT2602 Elektronische Bauelemente 6.3A, 20V,RDS(ON) 34m£[ N-Channel Enhancement Mode Power Mos.FET RoHS Compliant Product Description The STT2602 utiltzed advance processing techniques to achieve the lowest possible on-resistance, extermely efficient and cost-effectiveness device. The STT2602 is universally used for all commercial-industrial applications. Features * Low On-Resistance * Capable of 2.5V Gate Drive D D 5 S 4 6 D REF. A A1 A2 c D E E1 Date Code 2602 G 1 D 2 D 3 G S Millimeter Min. Max. 1.10 MAX. 0 0.10 0.70 1.00 0.12 REF. 2.70 3.10 2.60 3.00 1.40 1.80 REF. L L1 b e e1 Millimeter Min. Max. 0.45 REF. 0.60 REF. 0° 10° 0.30 0.50 0.95 REF. 1.90 REF. Absolute Maximum Ratings www.DataSheet4U.
