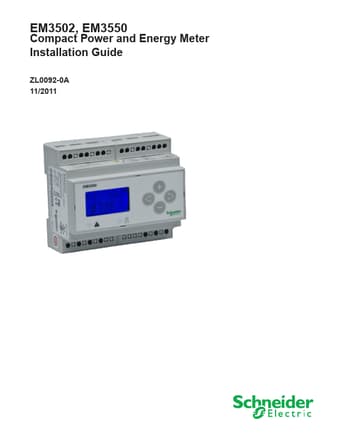

EM3550, EM3502 - Compact Power and Energy Meter Manual

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: EM3550, EM3502. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number EM3550, EM3502
Manufacturer Schneider
File Size 1.00 MB
Description Compact Power and Energy Meter Manual
Datasheet download datasheet EM3502-Schneider.pdf
Note This datasheet PDF includes multiple part numbers: EM3550, EM3502.
Please refer to the document for exact specifications by model.

EM3550 Product details

Description

Measurement Accuracy Real Power and Energy IEC 62053-22 Class 0.5S, ANSI C12.20 0.5% Reactive Power and Energy IEC 62053-23 Class 2, 2% Current Voltage Sample Rate 0.4% (+0.015% per °C deviation from 25°C) from 5% to 100% of range; 0.8% (+0.015% per °C deviation from 25°C) from 1% to 5% of range 0.4% (+0.015% per °C deviation from 25°C) from 90 V L-N to 600 VAC L-L 2520 samples per second Data Update Rate 1 sec Type of Measurement True RMS up to the 21st harmonic 60 Hz; One to three ph
