2N6292, 2N6288 - Silicon NPN Power Transistors

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2N6292, 2N6288. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2N6292, 2N6288
Manufacturer Savantic
File Size 91.22 KB
Description Silicon NPN Power Transistors
Datasheet download datasheet 2N6288-Savantic.pdf
Note This datasheet PDF includes multiple part numbers: 2N6292, 2N6288.
Please refer to the document for exact specifications by model.

2N6292 Product details

Description

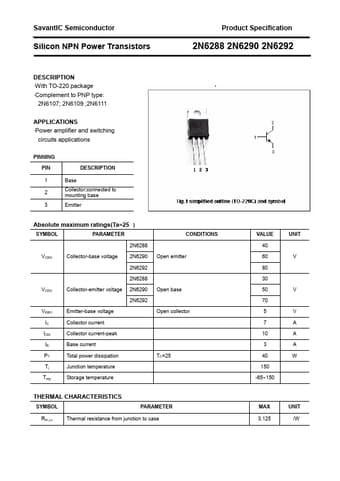

With TO-220 package Complement to PNP type: 2N6107; 2N6109 ;2N6111 APPLICATIONS Power amplifier and switching circuits applications PINNING PIN 1 2 3 DESCRIPTION Base Collector;connected to mounting base Emitter Absolute maximum ratings(Ta=25 ) SYMBOL PARAMETER 2N6288 VCBO Collector-base voltage 2N6290 2N6292 2N6288 VCEO Collector-emitter voltage 2N6290 2N6292 VEBO Emitter-base voltage IC Collector current ICM Collector current-peak IB Base current PT Total pow
