MJ4034, MJ4033 - (MJ4033 - MJ4035) SILICON POWER TRANSISTOR

The MJ4034 by SavantIC is a (MJ4033 - MJ4035) SILICON POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the MJ4034 (MJ4033 - MJ4035) SILICON POWER TRANSISTOR datasheet (SavantIC).

Datasheet Details

Part number MJ4034, MJ4033
Manufacturer SavantIC
File Size 138.51 KB
Description (MJ4033 - MJ4035) SILICON POWER TRANSISTOR
Datasheet download datasheet MJ4033_SavantIC.pdf
Note This datasheet PDF includes multiple part numbers: MJ4034, MJ4033.
Please refer to the document for exact specifications by model.
Additional preview pages of the MJ4034 datasheet.

MJ4034 Product details

Description

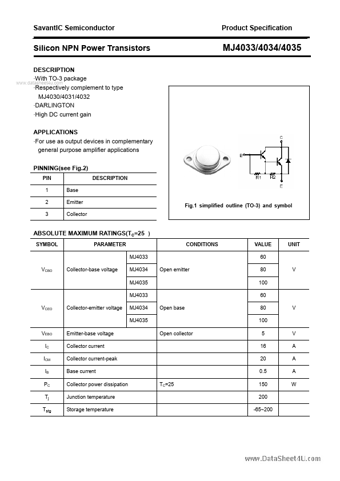

With TO-3 package www.datasheet4u.com Respectively complement to type MJ4030/4031/4032 DARLINGTON High DC current gain APPLICATIONS For use as output devices in complementary general purpose amplifier applications PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector DESCRIPTION MJ4033/4034/4035 Fig.1 simplified outline (TO-3) and symbol ABSOLUTE MAXIMUM RATINGS(TC=25 ) SYMBOL PARAMETER MJ4033 VCBO Collector-base voltage MJ4034 MJ4035 MJ4033 VCEO Collector-emitter volta
