C3159 - 2SC3159

C3159 Description

SavantIC Semiconductor www.DataSheet4U.com Product Specification Silicon NPN Power Transistors 2SC3159 .
With TO-220F package. High voltage. High switching speed APPLICATIONS. For switching regulator applications PINNING PIN DE 1 2 3 Base.

C3159 Applications

* For switching regulator applications PINNING PIN DE 1 2 3 Base Collector Emitter Fig.1 s implified o utline ( TO-220F) a nd s ymbol SCRIPTION Absolute maximum ratings (Ta=25 ) SYMBOL P VCBO VCEO VEBO IC ICM IB PC Tj Tstg ARAMETER Collector-base voltage Collector-emitter voltage Emitter-base vo

📥 Download Datasheet

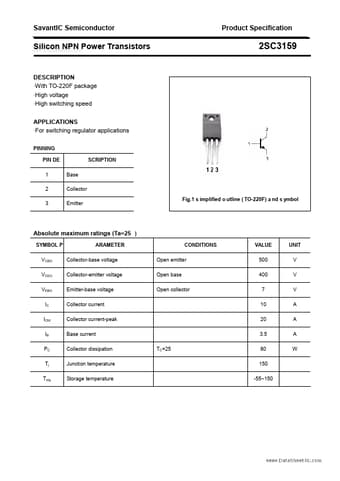

Preview of C3159 PDF
